Three-axis Yaw, Pitch and Roll Stage

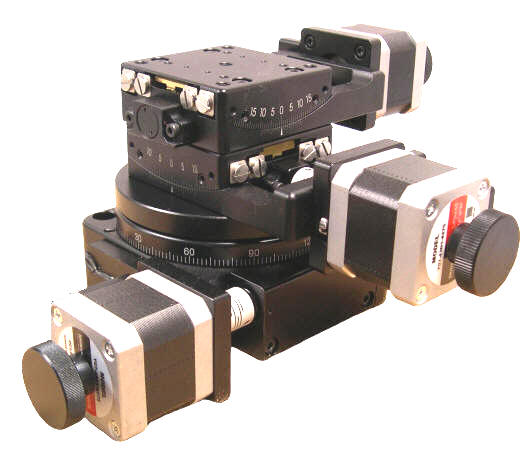

The YPR-100-10-15-01 (stepper motor driven), the YPR-100-10-15-02 (brushless servo motor driven with quadrature optical encoder) and the YPR-100-10-15-03 (DC servo motor driven with quadrature optical encoder.  These Yaw-Pitch-Roll stages are ideal for the precise measurement of compound angles or the curvature of an object.

The Yaw axis (bottom stage) is capable of rotation of large angles and features a 180:1 ratio gear. The typical position accuracy is 0.05 degrees and repeatability is +/- 0.01 degrees.

The Pitch axis (middle stage) has cross roller guides and a range of travel of +/- 10 degrees and has an accuracy of 0.05 degrees and repeatability of +/- 0.01 degrees.
The Roll axis (top stage) has cross roller guides and a range of travel of +/- 15 degrees and the 65 mm x 65 mm table has a precise pattern of threaded holes for fixtures or tooling.  This stage has an accuracy of 0.05 degrees and repeatability of +/- 0.01 degrees and the total center deflection for all axes is 0.03 mm. The rotation center height is 50 mm.

The Pitch and Roll axes are equipped with end of travel limit switches. The yaw axis has a HOME signal for initialization. Additionally all axes have a calibrated indicator to display the angle of rotation. The maximum speed with stepper motors is 14 degrees/second and 90 degrees/second with servo motors.

The knobs of stepper motors can be replaced with optional optical encoders for position verification. The YPR-100-10-15-02 and YP110-10-03 feature servo motors and optical quadrature encoders for very precise closed loop operation and greater speeds.

The YPR-100-10-15 Motorized Three-axis Stages require a Motion Controller that can be ordered as a complete plug-and-play system with  joystick, trackball, and keypad.

Specifications



YPR-100-10-15

Total Weight

3.5 kg (7.7 lb)

Load Capacity

4.0 kg (8.8 lb)

Base Material

Aluminum Alloy

Surface Treatment

Black Anodized



DB9 Male pinout



Typical Phase Resistance 3.8 Ohms, Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Stepper Motor
Pin Assignment and Description

1

+5 VDC

2

CCW Limit Switch , Open Collector, Normally Open, Needs Pull up Resistor (Pitch and Roll Axes)

3

CW Limit Switch , Open Collector, Normally Open, Needs Pull up Resistor

4

Common (Pitch Axis)

5

HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor (Yaw Axis)

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-





Yaw (Lower) Axis

Structure Description

Gear Ratio (stage) : 180 ° (motor)
Drive Mechanism

Worm Gear

Travel Guide Bearing

Typical Accuracy

Resolution Stepper Motor Driver or Servo Motor Optical Encoder Dependent
Repeatability +/-0.01°
Positional Accuracy 0.05°
Maximum Speed with Stepper Motor 14 degrees per second
Maximum Speed with Servo Motor 45 degrees per second


Roll (Top) Axis

Structure Description Range of Travel

+/-15 degrees

Table Size 65 mm x65 mm
Gear Ratio 1° (stage) : 252° (motor)
Height of Rotation Stage

50 mm+/-0.2 mm

Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide
Rotation Center Deflection Accuracy 0.03 mm

Typical Accuracy

Resolution Stepper Motor Driver or Servo Motor Optical Encoder Dependent
Repeatability +/-0.01 degrees
Positional Accuracy 0.05 degrees
Maximum Speed with Stepper Motor 14 degrees per second
Maximum Speed with Servo Motor 45 degrees per second


Pitch (Middle) Axis

Structure Description Range of Travel

+/-10 degrees

Table Size 65 mm x65 mm
Gear Ratio 1° (stage) : 352° (motor)

Drive Mechanism Worm Gear
Travel Guide Crossed-roller Guide


Typical Accuracy

Resolution Stepper Motor Driver or Servo Motor Optical Encoder Dependent
Repeatability +/-0.01 degrees
Positional Accuracy 0.05 degrees
Maximum Speed with Stepper Motor 14 degrees per second
Maximum Speed with Servo Motor 45 degrees per second

Stepper Motor Driven Mechanical Drawing (Roll Table)


Ordering Information

Part No. Description Amount
YPR- 100-10-15-01 Three -axis Stepper Motor Driven Yaw, Pitch and Roll Stage , Table Size 65x65 mm Click to Get a Quote
YPR- 100-10-15-02 Three -axis Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Yaw, Pitch and Roll Stage, Table Size 65x65 mm Click to Get a Quote
YPR- 100-10-15-03 Three -axis DC Servo Motor with Quadrature Incremental Optical Encoder Driven Yaw, Pitch and Roll Stage, Table Size 65x65 mm Click to Get a Quote
YPR- 100-10-15-04 Three -axis Stepper Motor Driven Yaw, Pitch and Roll Stage with 500 Cycles per Revolution Quadrature Optical Encoders Mounted at the back of the Stepper Motors , Table Size 65x65 mm Click to Get a Quote
