Three-axis Yaw, Pitch and Roll Stage
|
Home >
Motorized Yaw, Pitch and Roll Stages
|

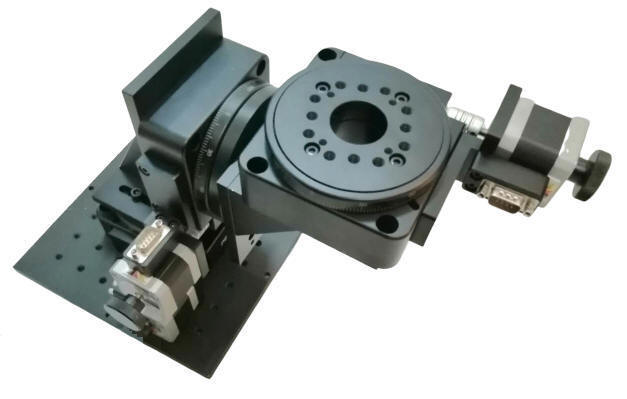

![Three-axis Yaw, Pitch and Roll Stage, Stage Diameter: 100mm](pics/three-axis-yaw-pitch-roll-stage-100.jpg)
|
![](pics/motori3.jpg) |
This series of Yaw-Pitch-Roll stages is ideal for pointing and the precise measurement of compound angles or the curvature of an object.
The YPR-100-100-100-01 is stepper motor driven, the YPR-100-100-100-02 is brushless servo motor driven with quadrature optical encoder and the YPR-100-100-100-03 is DC servo motor driven with quadrature optical encoder.
The all three axes are capable of rotation of large angles and feature a 180:1 ratio gear. The typical position accuracy is 0.05 degrees and repeatability is +/- 0.01 degrees.
The knobs of the stepper motors can be replaced with optional optical encoders for position verification.
The YPR-100-100-100-02 and YP100-10-03 feature servo motors and optical quadrature encoders for very precise closed loop operation and greater speeds. All axes include a HOME switch for initialization.
The
YPR-100-100-100 stages require a
Motion Controller
that can be ordered as a complete plug-and-play system with joystick, trackball, and keypad.
|
|
|
Specifications
|
YPR-100-100-100 |
Total Weight |
5.5 kg (12.1 lb) |
Load Capacity |
4.0 kg (8.8 lb) |
Base Material |
Aluminum Alloy
|
Surface Treatment |
Black Anodized |
![](../motorized-linear-stages/low-cost-series/pics/Motorized%20Linear%20Stage%20Pin%20Assignment.gif) |
Typical Phase Resistance |
3.8 Ohms, Bi-directional |
Typical Phase Current |
1 Amp |
DB-9 Male Connector |
Stepper Motor |
Pin Assignment and Description |
1 |
+5 VDC |
2 |
Not Used |
3 |
Not Used |
4 |
Common |
5 |
HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor |
6 |
Stepper Motor Phase A+ |
7 |
Stepper Motor Phase A- |
8 |
Stepper Motor Phase B+ |
9 |
Stepper Motor Phase B- |
|
|
|
|
|
|
|
All Axes |
Structure Description |
Gear Ratio |
1 degrees
(stage) : 180 degrees
(motor) |
Drive Mechanism |
Worm Gear |
Travel Guide |
Bearing |
Typical Accuracy
|
Resolution |
0.001 degrees = 3.6 arcsec (10 Micro-steps per Step Motor Driver in use) |
Repeatability |
+/-0.01 degrees |
Positional Accuracy |
0.05 degrees |
Maximum Speed with Stepper Motor |
14 degrees per second |
Maximum Speed with Servo Motor |
45 degrees per second |
|
|
Stepper Motor Driven Mechanical Drawing (Roll Table)
![](pics/two-axis-pitch-yaw-stage-PY100-45.jpg)
|
Ordering Information
Part No. |
Description |
Amount |
YPR-100-100-100-01 |
Three-axis Stepper Motor Driven Yaw, Pitch
and Roll Stage,
Table diameter: 100 mm |
Click to Get a Quote |
YPR-100-100-100-02 |
Three-axis
Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven
Yaw, Pitch and Roll Stage,
Table diameter: 100 mm |
Click to Get a Quote |
YPR-100-100-100-03 |
Three-axis
DC
Servo Motor with Quadrature Incremental Optical Encoder Driven
Yaw, Pitch and Roll Stage,
Table diameter: 100 mm |
Click to Get a Quote |
YPR-100-100-100-04 |
Three-axis Stepper Motor Driven Yaw, Pitch
and Roll Stage
with 500 Cycles per Revolution Quadrature Optical Encoders
Mounted at the back of the Stepper Motors,
Table diameter: 100 mm |
Click to Get a Quote |
