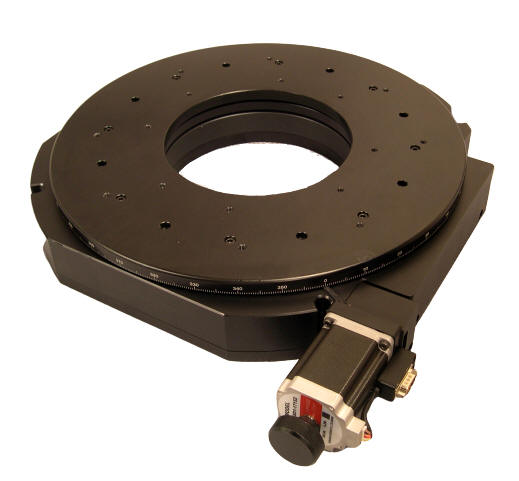

Hollow Core Motorized Rotary Stage
|
|
Home >
Motorized Rotary Stages |
|
|
|

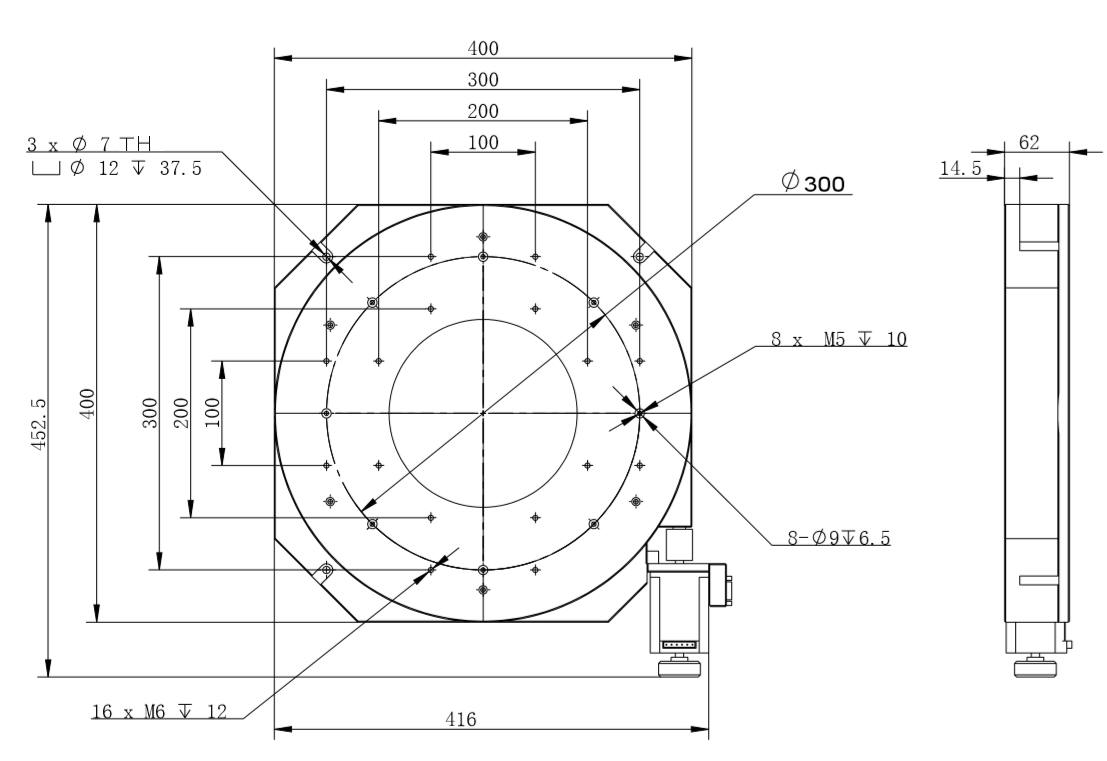

The low profile 400 mm AY110-400-01 (step motor driven) and AY110-400-02 (servo motor driven) Rotary Stages feature a 180 mm (7.087 in) open aperture. The height of the stage is just 71 mm (2.795 in.). A precise pattern of 16 threaded holes in two bolt circles allows for easy mounting of custom tooling and fixtures, and easily accessible mounting holes in the base are for easy integration into new and existing applications.
The diameter
of the
rotary table
is 400 mm
(15.748 in.)
and the
range of
travel is a
full 360o
of
continuous
rotation.
The table is
driven by a
smooth 360:1
worm gear
and has a
resolution
of 0.0005o
(18 arcsec)
with a 10
micro-steps
per step
stepper
motor driver
and
repeatability
is +/- 0.02o
(72
arcsec).
The
AY110-400
Rotary
Stages also
features
positional
accuracy of
+/- 0.05o,
surface
roundness of
20 microns
and
parallelism
of 120
microns.
The
AY110-400-01
rotary stage
is equipped
with stepper
motor and a
knob for
manual
adjustment
which can be
replaced
with an
optical
encoder for
precision
position
verification. The
AY110-400-02
rotary stage
is fitted
with a DC
servo motor
and
quadrature
incremental
encoder for
closed loop
operation.
These black
anodized
stages have
a load
capacity of
75Kg (165.3
lbs).
This
stage requires a
Motion Controller
that can be
ordered as a
complete
plug-and-play
system with
RS-232, USB,
joystick,
trackball,
and keypad
control. |
|
Specifications
| Type |
AY110-400 |
|
Structure
Description |
Range of Travel |
360 degrees |
| Stage Diameter |
400 mm |
|
Aperture Diameter |
180 mm (7.087 in) |
| Gear Ratio |
1 degree (stage) : 360 degrees (motor)
|
| Drive Mechanism |
Worm Gear |
| Travel Guide |
Bearing |
| Stepper Motor
 |
2 Phase Stepper Motor
| Typical Phase Resistance |
2.5 Ohms |
| Typical Phase Current |
3.0 Amps |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
|
1 |
+5 VDC for HOME Switch |
|
2 |
Not Connected |
|
3 |
Not Connected |
|
4 |
Common |
|
5 |
HOME Switch, Open Collector, Normally Open, Needs 1K Pull up Resistor |
|
6 |
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
| Base Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
75 kg |
Weight |
29.6 kg (65 lbs) |
|
Typical Accuracy
|
| Resolution |
0.005 degrees = 18 arcsec (Full Step)
0.0005 degrees =1.8 arcsec (10 Micro-steps per Step Motor Driver in use) |
| Repeatability |
+/-0.02 degrees =72 arc-sec |
| Positional Accuracy |
0.05 degrees |
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
AY110-400-01 |
Stepper Motor Driven Rotary Stage, Stage Diameter: 400 mm, Load Capacity:
75 kg |
Click to Get a Quote |
|
AY110-400-02 |
DC
Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven
Motorized Rotary Stage, Stage Diameter: 400 mm, Load Capacity:
75 kg |
Click to Get a Quote |
|
AY110-400-03 |
DC
Servo Motor with Quadrature Incremental Optical Encoder Driven
Motorized Rotary Stage, Stage Diameter: 400 mm, Load Capacity:
75 kg |
Click to Get a Quote |
|
AY110-400-04 |
Stepper Motor Driven Rotary Stage
with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the
back of the Stepper Motor, Stage Diameter: 400 mm, Load Capacity:
75 kg |
Click to Get a Quote |
|
