Motorized Single-axis Linear Electroless Nickel Plated Steel Actuators

Home > Nickel Plated Steel Actuators

Motorized Single-axis Linear Nickel Plated Steel Actuators, Normal Grade

These two Stainless Steel Electroless Nickel plated Linear Single-axis Stages are used in extra clean environments. The AX40-F1VR-ND and the AX40-F1VL-ND Linear (X-axis) Stages have a 40 mm (1.575 in.) by 40 mm (1.575 in.) table and a stroke length of 15 mm (0.590 in.). These high precision stages feature: Repeatability of +/- 2 microns, 2 micron dynamic straightness, 10 micron dynamic parallelism, and 0.5 micron resolution with a 10 micro-step per step micro-stepper driver!  The smooth electroless nickel plating has high wear resistance, is resistant to microbial growth and corrosion, and is compatible with cleaning agents and disinfectants making it an ideal choice for use in: Pharma, Biopharma, medical device research and manufacturing applications, as well as printed circuits, hard drives, and other components when a higher level of cleanness is required.

Driven by a Two-Phase Stepper Motor with end of travel limit switches, this series of linear stages is available with a right (pictured) or left wiring configuration.   Easy integration into an application is enabled by 4 M3x0.5*6L threaded mounting holes in the table for fixtures and readily accessible mounting holes in the base.  The load capacity of the linear ball guide stages is 10 kg (22 lbs.).

Specifications

Part No.. Axis Table Size (mm) Range of Travel (mm) Load Capacity (kg) Typical Repeatability Accuracy Typical Positioning Accuracy Maximum Speed

 AX40-F1VR-ND

X 40x40 15 10 ± 2 microns 25 microns 6 mm/sec

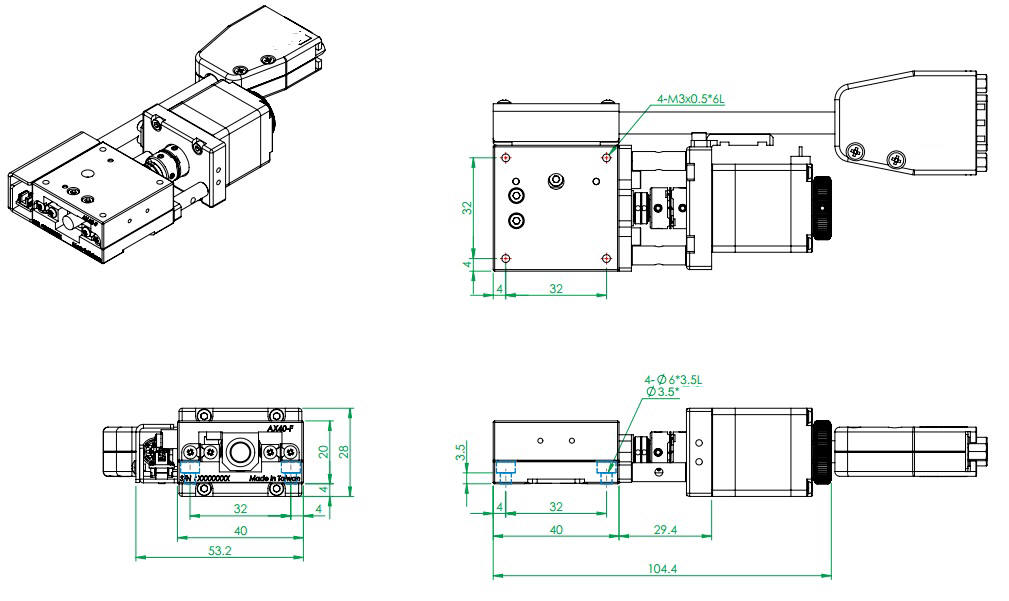

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
AX40-F1VR-ND Motorized X-axis Linear Positioning Stage Click to Get a Quote
