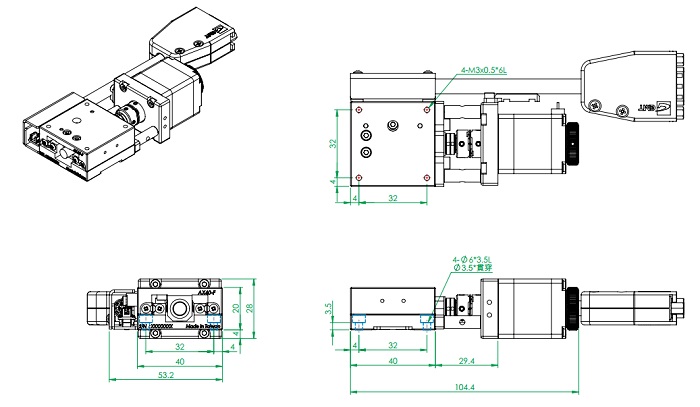

This motorized X-axis
positioning is made of nickel plated steel.
The stage size is 40x40 mm.
The Range of Travel is 15 mm.
The Load Capacity is 10 kg.
The
resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps
per step motor driver.
The typical repeatability accuracy is ± 1 micron.
The typical positioning accuracy is 15 microns.
The maximum speed is 12 mm / sec.
|
