Motorized Single-axis Linear Nickel Plated Steel Actuators

Home > Motorized Precision Stages

Motorized Single-axis Linear Nickel Plated Steel Actuators, Normal Grade

This motorized single-axis positioning is made of Nickel Plated Steel.

The stage size is 60x60 mm.

The Range of Travel is 15 mm.

The Load Capacity is 12 kg.

The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.

The typical repeatability accuracy is ± 2 microns.

The typical positioning accuracy is 25 microns.

The maximum speed is 6 mm / sec.

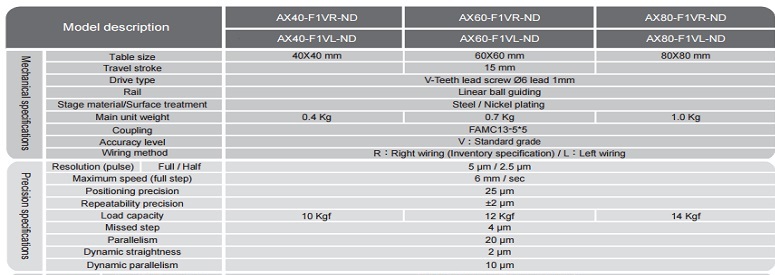

Specifications

Part No.. Axis Table Size (mm) Range of Travel (mm) Load Capacity (kg) Typical Repeatability Accuracy Typical Positioning Accuracy Maximum Speed

 AX60-F1VR-ND

X 60x60 15 12 ± 2 microns 25 microns 6 mm/sec

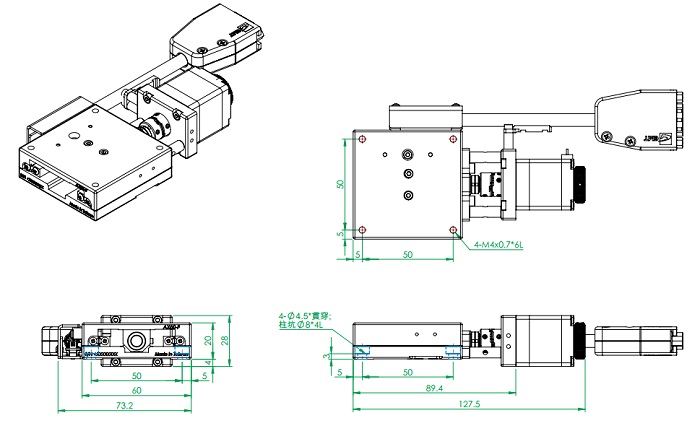

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
AX60-F1VR-ND Motorized X-axis Linear Positioning Stage Click to Get a Quote
