Motorized X-axis Linear Positioning Stage

Home > Motorized Precision Stages

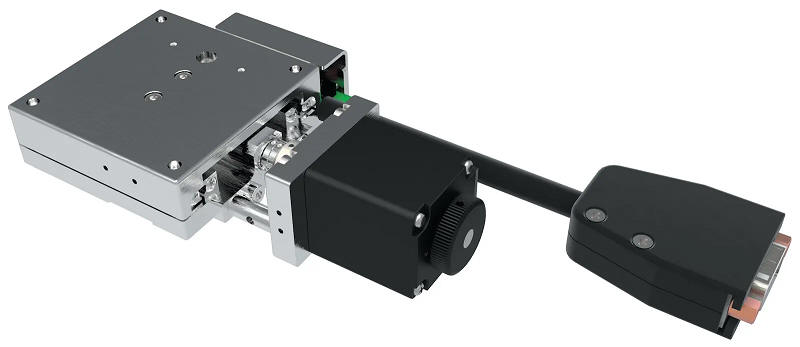

Motorized Single-axis Linear Nickel Plated Steel Actuators, Normal Grade

This motorized X-axis positioning is made of nickel plated steel.

The stage size is 80x80 mm.

The Range of Travel is 15 mm.

The Load Capacity is 14 kg.

The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.

The typical repeatability accuracy is ± 1 micron.

The typical positioning accuracy is 15 microns.

The maximum speed is 12 mm / sec.

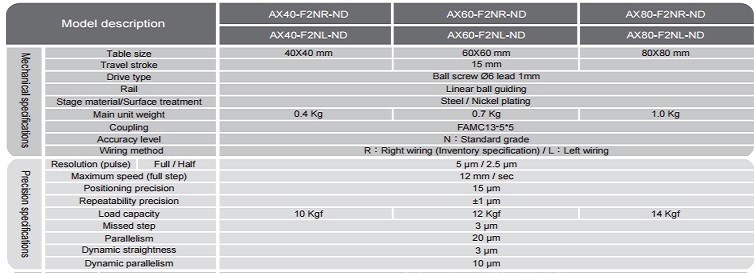

Specifications

Part No.. Axis Table Size (mm) Range of Travel (mm) Load Capacity (kg) Typical Repeatability Accuracy Typical Positioning Accuracy Maximum Speed

 AX80-F2NL-ND

X 80x80 15 14 ± 1 micron 15 microns 12

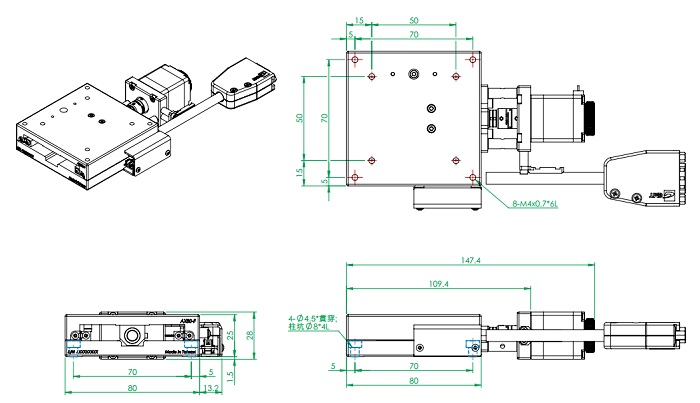

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
AX80-F2NL-ND Motorized X-axis Linear Positioning Stage Click to Get a Quote
