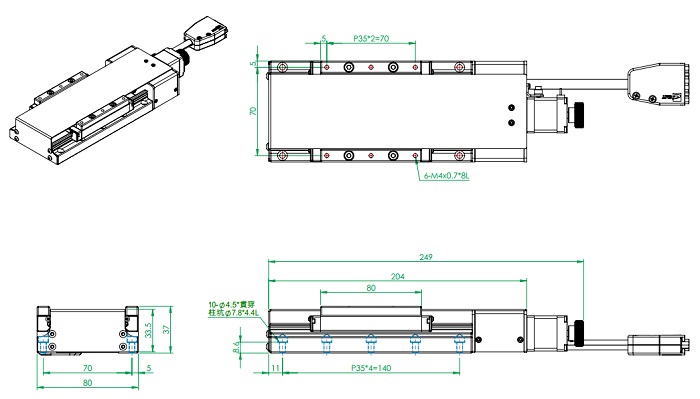

This motorized
X-axis positioning is made of aluminum alloy.
The stage size is 80x80 mm.
The Range of Travel is 50 mm.
The Load Capacity is 16 kg.
The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.
The typical repeatability accuracy is ± 2 microns.
The typical positioning accuracy is 25 microns.
The maximum speed is 10 mm / sec.
|
