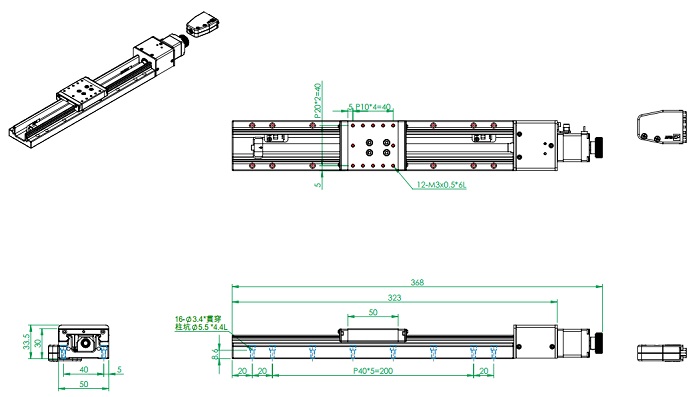

This motorized
X-axis positioning is made of stainless steel without cover.
The stage size is 50x50 mm.
The Range of Travel is 200 mm.
The Load Capacity is 10 kg.
The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.
The typical repeatability accuracy is ±
1 micron.
The typical positioning accuracy is 20 microns.
The maximum speed is 20 mm / sec.
|
