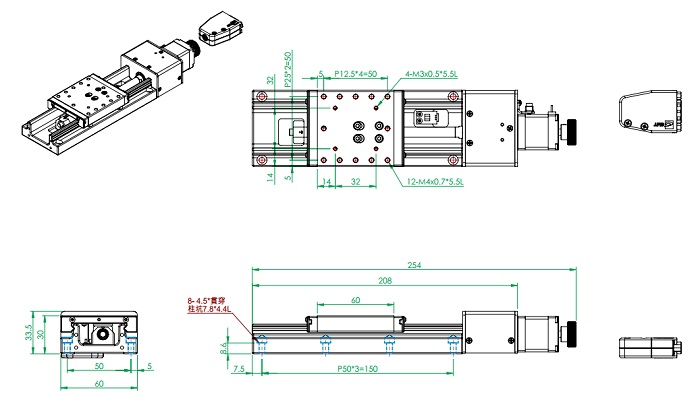

This motorized
X-axis positioning is made of stainless steel without cover.
The stage size is 60x60 mm.
The Range of Travel is 75 mm.
The Load Capacity is 14 kg.
The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.
The typical repeatability accuracy is ± 2 microns.
The typical positioning accuracy is 25 microns.
The maximum speed is 10 mm / sec.
|
