Motorized Single-axis Linear Stainless Steel Type without Cover Positioning Stage

Home > Motorized Precision Stages


This motorized  X-axis positioning is made of stainless steel without cover.

The stage size is 80x80 mm.

The Range of Travel is 30 mm.

The Load Capacity is 16 kg.

The resolution is 1 micron / 0.5 microns  with 10 / 20 micro-steps per step motor driver.

The typical repeatability accuracy is ± 1 micron.

The typical positioning accuracy is 10 microns.

The maximum speed is 40 mm / sec.

Specifications

Part No.. Axis Table Size (mm) Range of Travel (mm) Load Capacity (kg) Typical Repeatability Accuracy Typical Positioning Accuracy Maximum Speed

 CXN8030-S2NN-ND-P2

X 80x80 30 16 ± 1 micron 10 microns 40

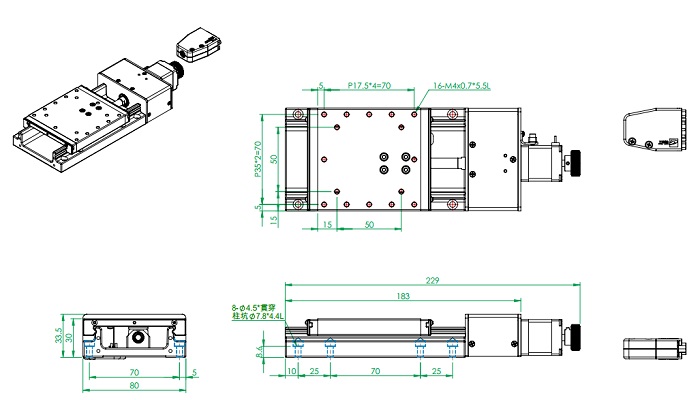

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
CXN8030-S2NN-ND-P2 Motorized Single-axis Linear Stainless Steel Type without Cover Positioning Stage Click to Get a Quote
