Motorized Single-axis Linear Stainless Steel Type without Cover Positioning Stage

Home > Motorized Precision Stages

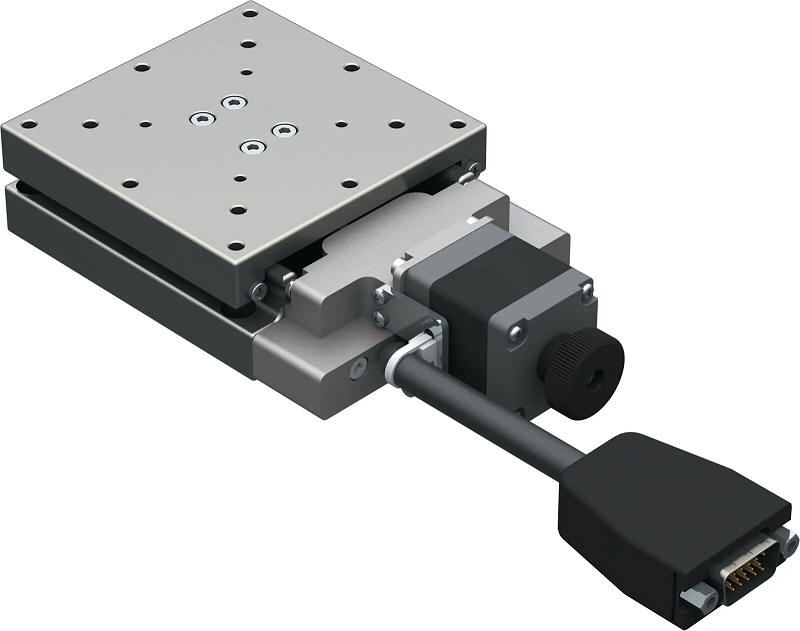

Motorized Single-axis Linear Stainless Steel Type Positioning Stages without Cover , Precision Grade

This motorized  X-axis positioning is made of stainless steel without cover.

The stage size is 60x60 mm.

The Range of Travel is 30 mm.

The Load Capacity is 7 kg.

The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.

The typical repeatability accuracy is ± 2 microns.

The typical positioning accuracy is 25 microns.

The maximum speed is 10 mm / sec.

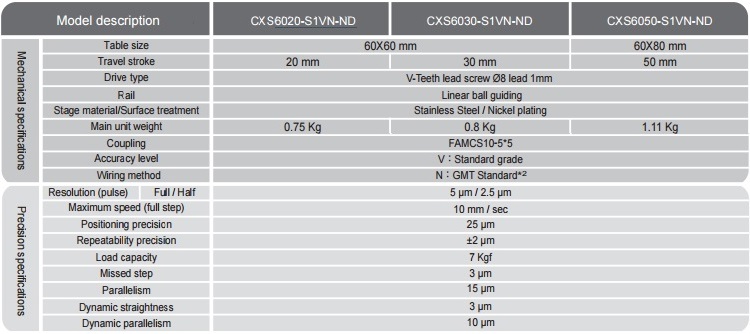

Specifications
Part No.. Axis Table Size (mm) Range of Travel (mm) Load Capacity (kg) Typical Repeatability Accuracy Typical Positioning Accuracy Maximum Speed

 CXS6030-S1VN-ND

X 60x60 30 7 ± 2 microns 25 microns 10

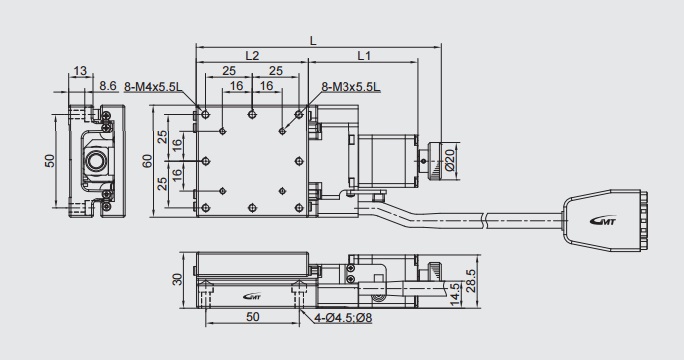

Stepper Motor Driven Mechanical Drawing


 Ordering Information

Part No. Description Amount
CXS6030-S1VN-ND Motorized Single-axis Linear Stainless Steel Type without Cover Positioning Stage Click to Get a Quote
