Stepper Motor,
Size 17, 44 oz-in,
200 Steps per Revolution
|
|
Model
|
Configuration
|
Holding
Torque
|
Current
per Phase
|
Voltage
|
Resistance per Phase
|
Inductance per Phase
|
Rotor
Inertia
|
|
oz-in
N-m
|
Amp
|
Volts
|
Ohms
|
mH
|
oz-in2
Kg-m2
|
|
STPM-17-200-44-W
|
Full Coil
|
61
0.43
|
0.85
|
5.6
|
6.6
|
11.2
|
0.37
68X10-7
|
|
Half Coil
|
45
0.32
|
1.2
|
4.0
|
3.3
|
2.8
|

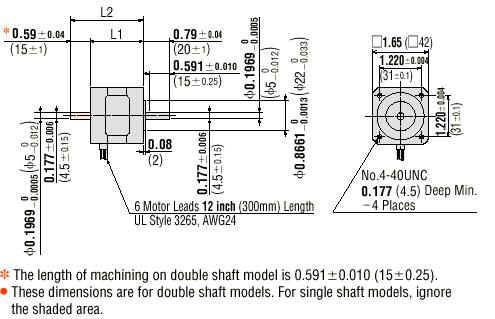

Dimensions
|
|
L1 =
1.85 “ (47 mm)
L2 = 2.44” (62 mm)
Weight = 0.77 lb (0.35 Kg)
|

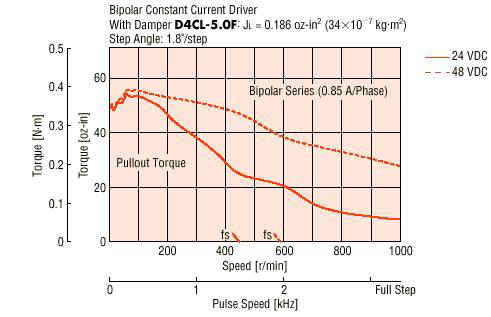

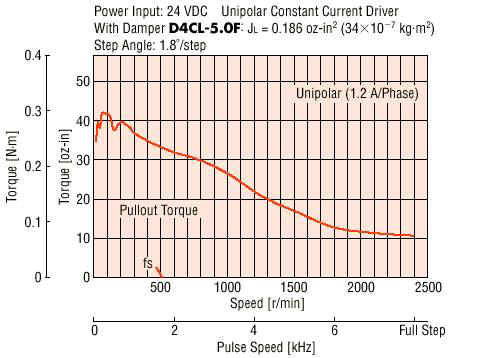

Speed Vs. Torque
Characteristics
|
|
Full
Coil
|
|
|
|
Half
Coil
|
|
|
|
|
