Motorized Single-axis Table
|
|
Home >
Motorized Linear Actuators
>
Low Cost Linear
Single-axis Stages
|
|
|
|

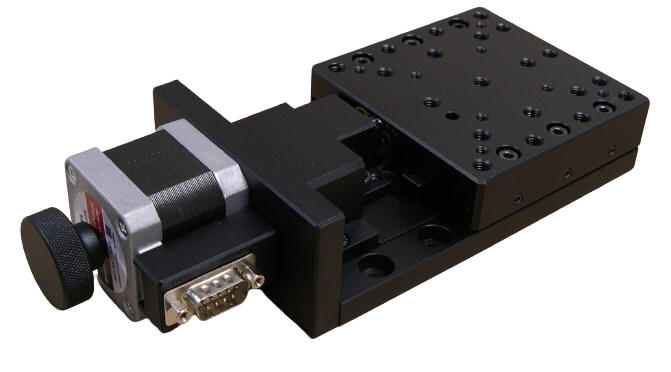

This
motorized
positioning table
is made of
aluminum
alloy with
an elegant
black
anodized
surface.
It provides
30 mm of
travel at
a Maximum
Speed with
Stepper
Motor of
10 mm per
second.
The drive
mechanism is
lead screw.
The bench
size is 90 X
90 mm and has a
body weight
of 1.25 Kg.
The maximum
load of this
stage
table is 15
Kg.
This
linear stage
is also
available
with a Three
Phase
Brushless
Servo Motor
and Optical
Encoder (-02
Version)
The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an
Optical
Encoder (-04
Version) for precision position verification.
This
stage requires a
Motion Controller
that can be
ordered as a
complete
plug-and-play
system with
RS-232, USB,
joystick,
trackball,
and keypad
control.
Video
Example |
|
Specifications
| Type |
AQ110-30 |
|

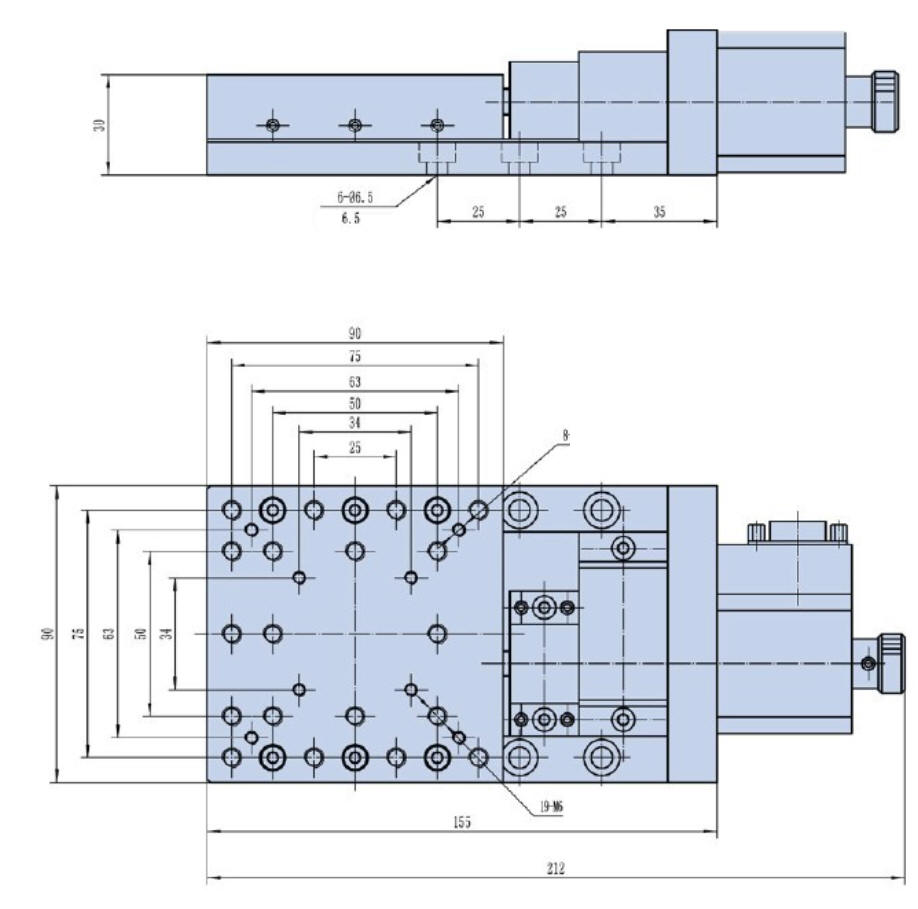

Structure
Description |
Travel |
30 mm |
| Table Size |
90×90 mm |
| Lead Screw Pitch |
1 mm per turn |
| Travel Guide |
High Precision Crossed Roller |
|
|
Two-Phase Stepper Motor (1.8°)
| Typical Phase Resistance |
3.8 Ohms, Bi-directional |
| Typical Phase Current |
1 Amp |
|
DB-9 Male Connector |
|
Pin Assignment and Description |
| 1 |
+5 VDC for the Limit Sensors |
| 2 |
Far End Limit Switch
Open Collector or Normally Open
Needs Pull up Resistor (typically
1000 Ohms)
Approximately 2.5 mm away from Far End Hard Stop
|
| 3 |
Near Motor Limit Switch
Open Collector or Normally Open
Needs Pull up Resistor (typically
1000 Ohms)
Approximately 2.5 mm away from Motor Side Hard Stop
|
| 4 |
Return for+5 VDC |
|
5 |
Not Connected |
|
6 |
Stepper Motor Phase A+ |
| 7 |
Stepper Motor Phase A- |
| 8 |
Stepper Motor Phase B+ |
| 9 |
Stepper Motor Phase B- |
|
| Body Material |
Aluminum Alloy |
| Surface Treatment |
Black Anodized |
| Load Capacity |
15 kg |
| Weight |
1.25 kg |
|
Typical Accuracy
|
Resolution |
Control Electronics Dependent, 0.5 microns with 10 Micro-steps per Step Motor Driver in use
0.25 microns with 20 Micro-steps per Step Motor Driver in use |
| Maximum Speed with Stepper Motor |
15 mm/sec |
| Maximum Speed with Servo Motor |
|
| Positioning Accuracy |
10 microns |
|
Accessories
Description
|
Positioning Repeatability |
5 microns |
| Optical Encoder (-04 Version) |
Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)
|
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
AQ110-30-01 |
Stepper Motor Driven Linear Single-axis Stage, Travel
: 30 mm |
Click to Get a Quote |
|
AQ110-30-02 |
Three Phase Brushless Servo Motor with Quadrature Incremental
Optical Encoder Driven Linear Single-axis Stage, Travel
: 30 mm |
Click to Get a Quote |
|
AQ110-30-03 |
DC Servo Motor with Quadrature Incremental
Optical Encoder Driven Linear Single-axis Stage |
Click to Get a Quote |
|
AQ110-30-04 |
Stepper Motor Driven
Linear Single-axis Stage with 500 Cycles per Revolution
Quadrature Optical Encoder Mounted at the back
of the Stepper Motor |
Click to Get a Quote |
|
|
