Servo Motor Driver

Data Sheet in PDF

Related Products

Brushless Servo Motors
DC Servo Motors
Linear and Rotary Actuator
Power Supplies
Features
  • Run DC Servos With Step And Direction Control Inputs

  • 20 Amp Motor Output

  • +18 VDC to +80 VDC Power Supply

  • PID Closed Loop Operation

  • Quadrature Encoder Feedback

  • Anti-Dithering Circuit Keeps Motor Silent

  • +5VDC, 50 ma Encoder Supply

  • Pulse By Pulse Motor Current Limiting

  • 0 to 20 Amp Current Limit Adjust Range

  • 25 KHz PWM Frequency

  • +/- 128 Count Servo Lock Range

  • No Tachometer Feedback Needed

  • 250 KHz Max Step Rate

  • Latched Fault Protection

  • 0C to 70C Operating Temperature

  • LED Fault Indicator

  • Small Size: 2.5" X 2.5" X 0.82" (63 mm X 63 mm X 21 mm)

  • Light: 3.6 Oz (100 gm)

  • Anodized Aluminum Package

  • Modular 2-Piece Main Connector

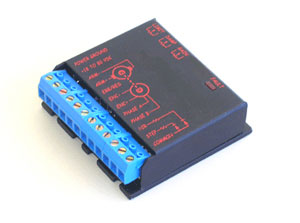

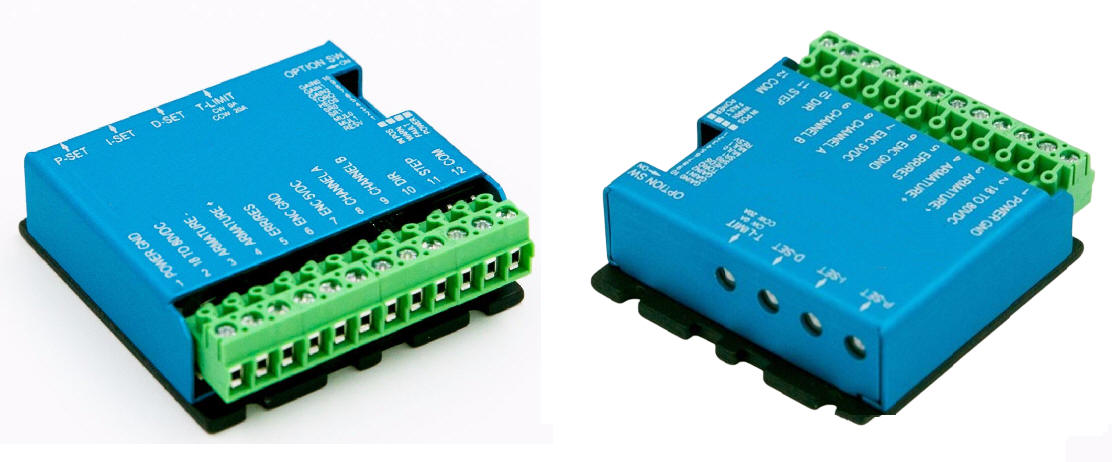

The SRVODRV-8020 is a high performance, cost effective Servo Motor Driver to implement intelligent Motion Control. The driver incorporates an advanced architecture and surface mount technology to achieve an exceptional power density.
ELECTRICAL SPECIFICATIONS

Supply Voltage

+18 VDC to +80 VDC

Phase Current

0 to 20 Amps

Step Frequency

0 to 250 kHz

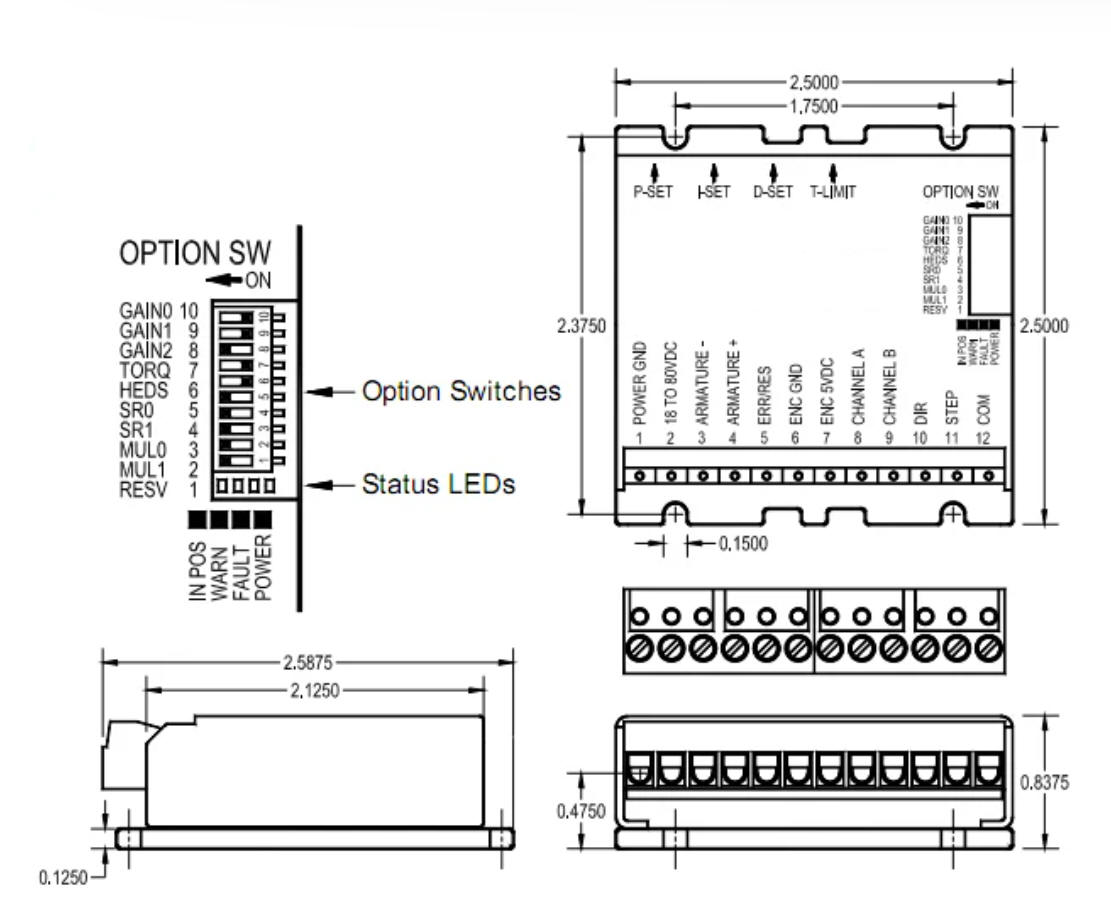

MECHANICAL SPECIFICATIONS
Weight 3.6 oz. (100 gm)
Dimensions 2.5”W, 2.5”D, .85”H (63.5 mm, 63.5 mm, 21.5 mm)
Mounting Pattern Four 6-32 Screws, 0.15" Diameter (3.8 mm), 1.75” by 2.375” (44.5 mm, 60 mm)
ENVIRONMENT

Heat Sink Temperature

0 oC to 70 oC

Ambient Temperature

0 oC to 50 oC

Storage Temperature

-40 oC to 125 oC

Humidity

0 - 95% with no condensation



Ordering Information

Part No. Description Amount
SRVODRV-8020  Servo Motor Driver Click to Get a Quote
