Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Super Thin X-axis

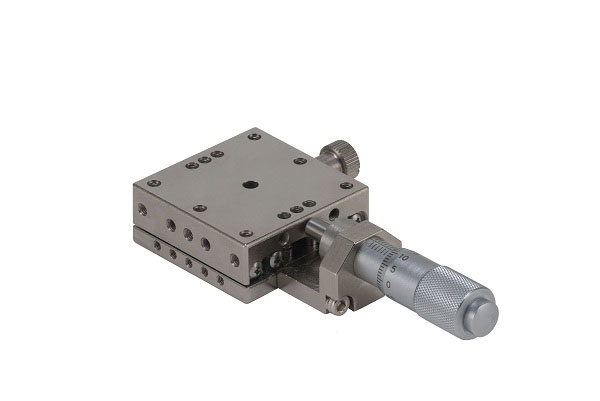

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 40 X 40 mm has a body weight of 0.23 kg.

It provides central type of feed position.

The maximum load of this linear table is 10 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish

 MX40-SC

40 by 40 X axis Center +/-6.5 10 micron 3 micron 10 0.23 stainless steel 440C Electroless
Nickel plating

Mechanical Drawing

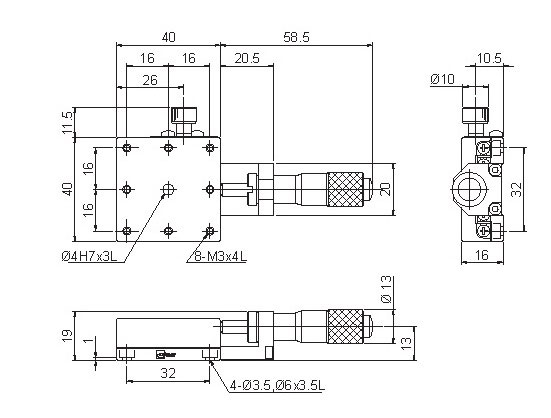

Manual Linear Positioning Stage Mechanical Drawing
MX40-SC

 Ordering Information

Part No. Description Amount
MX40-SC Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-6.5 mm Click to Get a Quote
