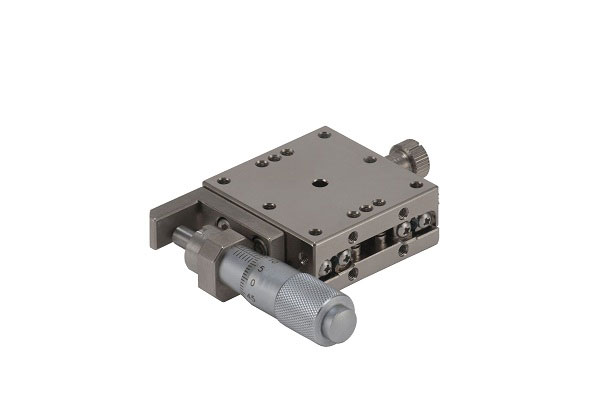

Manual Linear Positioning Stage P

This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 40 X 40 mm has a body weight of 0.23 kg.

It provides side type of feed position.

The maximum load of this linear table is 10 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Micrometer
minimum reading Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish

MX40-SS
40 by 40 X axis Side +/-6.5 10 micron 3 micron 10 0.23 stainless steel 440C Electroless
Nickel plating

Mechanical Drawing

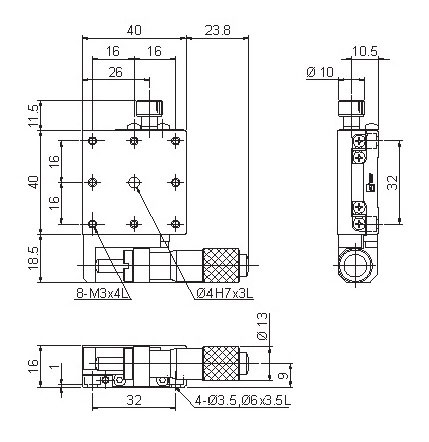

Manual Linear Positioning Stage Mechanical Drawing
MX40-SS

Ordering Information

Part No.	Description	Amount
MX40-SS	Manual Stage, Linear Ball Stage, Sub Stage X-axis, Range of Travel +/-6.5 mm	Click to Get a Quote
