Manual Crossed Roller Aluminum
XY-Rotary Axis Positioning Stage
MXYR85-A
|
 |
Home >
Manual Stages >
XY and Rotary-axis Stages |
 |
|
|
This manual rotary positioning is made of aluminum alloy with an black anodized coating.
The Table size has Ø85 body weight of 1.62 kg.
The maximum load of this super thin table is 4 kg.
The Multiple axes is base MY80-AS, Middle ..and Top MR85-A .
The Outline dimensions are W 160.5 , D 150 and H 65 mm.
The Range of Travel are X +/-12.5 , Y +/-12.5 and Z - , Ø Coarse360° Fine+/-0.5°.
|
|
Specifications
| |
Unit: mm
|
|
Part No.. |
Multiple axes |
Table
size |
Outline dimensions (mm) |
Range of Travel (mm) |
Load Capacity
(kg) |
Weight
(kg) |
|
Base |
Middle |
Top |
W |
D |
H |
X |
Y |
Z |
θ |
|
MXYR85-A |
MY80-AS |
- |
MR85-A |
Ø85 |
160.5 |
150 |
65 |
+/-12.5 |
+/-12.5 |
- |
Coarse360°
Fine+/-0.5° |
4 |
1.62 |
|
|
|
|
|

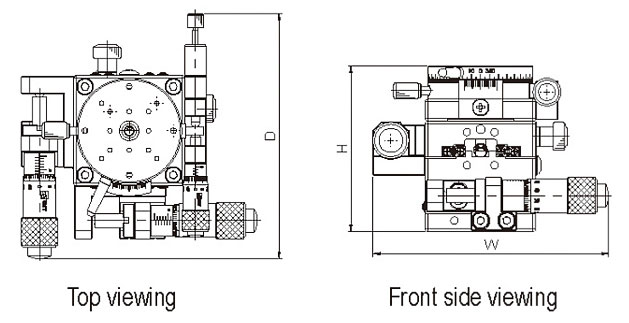

Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MXYR85-A |
Manual Crossed Roller Aluminum XY-Rotary Axis Positioning Stage |
Click to Get a Quote |
|
|
