Manual Crossed Roller XZ Axis Positioning Stage
MXZ100-
S

 Home >  Manual Stages > XZ Stages

Manual Dual-axis Super Thin Linear Positioning Stage Picture

This manual crossed roller XZ-axis positioning stage is made of stainless steel with electrless nickle plating.

The table size is 100 x 100 mm has a body weight of 3.63 kg.

The maximum load of this super thin table is 5 kg.

The movement accuracies are: Straightness 5microns, Vertical yawing 25" and Parallel yawing 15".

Specifications
  Unit: mm
Part No.. Table
size
Axis Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Movement accuracy
Straightness Vertical yawing Parallel yawing
 MXZ100-S 100 by 100 XZ 5 3.63 SUS 440C Electroless nickel plating 5 micron 25" 15"

Mechanical Drawing

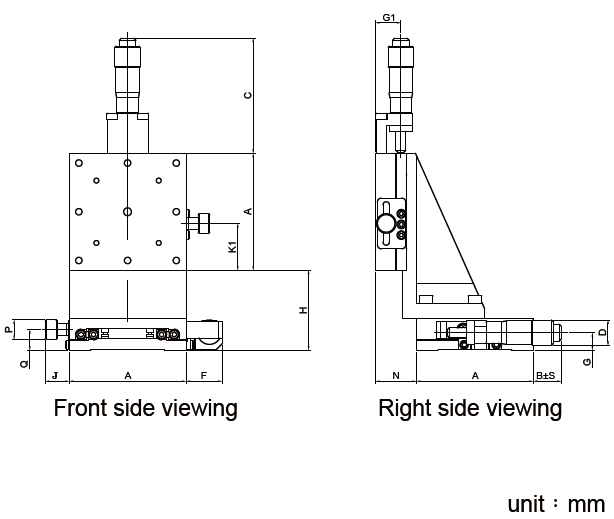

Manual Dual-axis Super Thin Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXZ100-S Linear Ball Bearing Stage 100 x 100 mm Table with Travel 13mm Click to Get a Quote
