Manual Crossed
Roller XZ Axis Positioning Stage
MXZ80-S
|
 |
Home >
Manual Stages >
XZ Stages
|
 |
|
|
This manual crossed roller XZ-axis positioning stage is made
of stainless steel with electrless nickle plating.
The table size is 80 x 80 mm has a body weight of 2.05 kg.
The maximum load of this super thin table is 5 kg.
The movement accuracies are: Straightness 5microns ,Vertical yawing 25" and Parallel yawing 15".
|
|
Specifications
| |
Unit: mm
|
|
Part No.. |
Table
size |
Axis |
Load Capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Movement accuracy |
|
Straightness |
Vertical yawing |
Parallel yawing |
|
MXZ80-S |
80 by 80 |
XZ |
5 |
2.05 |
SUS 440C |
Electroless nickel plating |
5 micron |
25" |
15" |
|
|
|
|
|

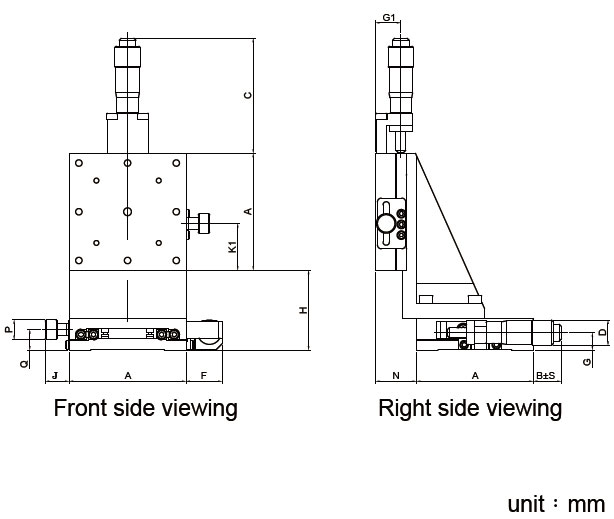

Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MXZ80-S |
Linear Ball Bearing Stage 80 x 80 mm Table with Travel 13mm
|
Click to Get a Quote |
|
|
