Manual Crossed Roller Vertical Positioning Stage
|
 |
Home >
Manual Stages >
Z-axis Stage >
Crossed Roller |
 |
|
|
This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.
The bench size is 50 X 64 mm has a body weight of 0.62 kgf.
The maximum load of this crossed roller vertical table is 7 kgf.
The distance of travel is 5.0 mm.
The minimum reading is 10 micro-meter with indicator scale.
|
|
Specifications
Unit: mm |
|
Model No. |
Table
Size |
Micrometer
minimum reading |
Load capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Travel Distance |
|
MZA1-5060 |
50 mm by 64 mm |
10 |
7 |
0.62 |
Aluminum Alloy |
Black anodized |
5.0 |
|
|
|

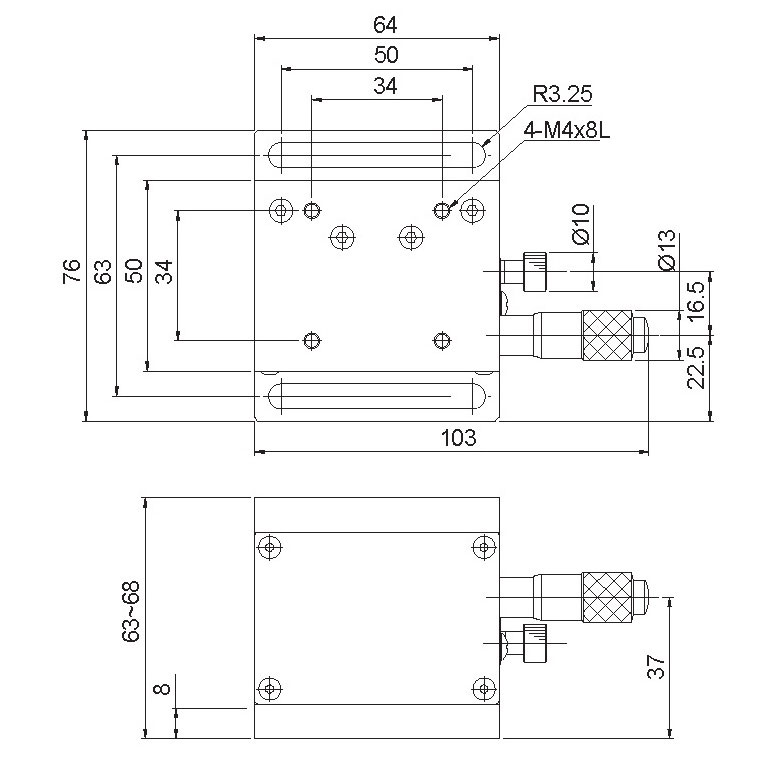

Mechanical Drawing
|
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MZA1-5060 |
Manual Stage, Z-axis Stage, Crossed Roller, Range of Travel 5 mm |
