Manual Linear Positioning Stage

Home > Manual Stages > Z-axis Stage > Laboratory Jacks

Manual Linear Positioning Stage Picture

This manual linear positioning is made of aluminum alloy with an black anodized.

The bench size is 80 X 120 mm has a body weight of 1.25 kgf.

The drive mechanism is worm and worm gear. The worm gear ratios is 2 per revolution of knob.

The maximum load of this linear table is 1.5 kgf.

The maximum load of these linear positioning tables is 7 kgf.

The distance of travel is +/- 6.5 mm.

The parallelism is 200 Ám.


Unit: mm
Model No. Table
Load capacity
Material Surface
Travel Distance Travel Distance per
Rev. of Knob


80 by 120 7.0 1.25 Aluminum Alloy Black anodized 40 2 200 μm

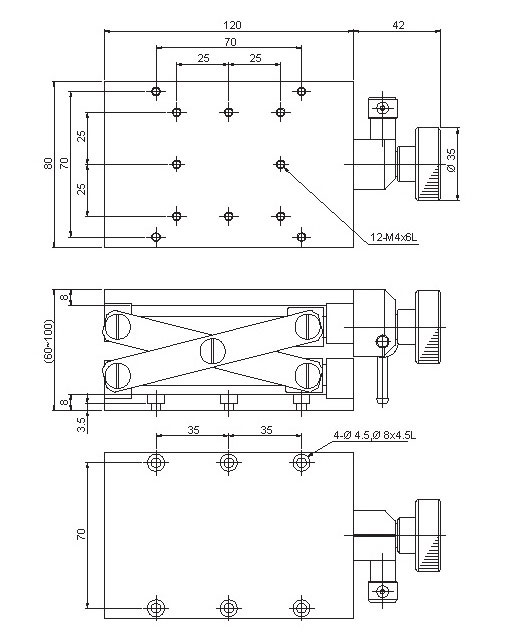

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MZF-80 Manual Stage, Z-axis Stage, Laboratory Jacks, Range of Travel 40 mm Click to Get a Quote
