Manual Single-axis Linear Positioning Stage
MX-25-AS

Home > Manual Stages > Crossed Roller Stages > X-axis Stages

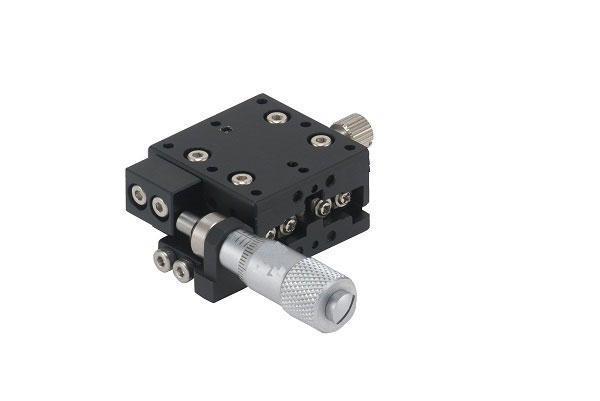

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 25 x 25 mm has a body weight of 0.04 kg.

It provides side type of feed position.

The maximum load of this super thin table is 1 kg.

The stroke is +/- 3.2 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MX25-AS
25 mm by 25 mm X axis Side +/-3.2 mm 3 micron 1 0.04 Aluminum Alloy Black anodized 10 micron

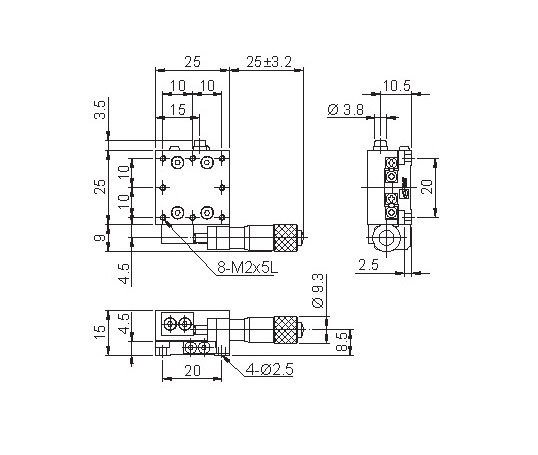

Mechanical Drawing

Manual Single-axis Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MX25-AS	Crossed Roller Mini Aluminum Stage X Axis 25x25 mm Table with 6.4mm Travel	Click to Get a Quote

Manual Single-axis Linear Positioning Stage MX-25-AS
