Manual Single-axis Linear Positioning Stage
MX30-AC

Home > Manual Stages > Crossed Roller Stages > X-axis Stages

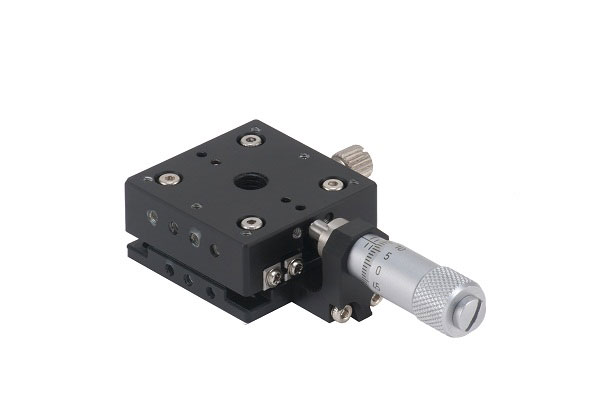

Manual Single-axis Linear Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 30 x 30 mm has a body weight of 0.04 kg.

It provides central type of feed position.

The maximum load of this super thin table is 1 kg.

The stroke is +/- 3.2 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MX30-AC
30 mm by 30 mm X axis Central +/-3.2 mm 3 micron 1 0.04 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

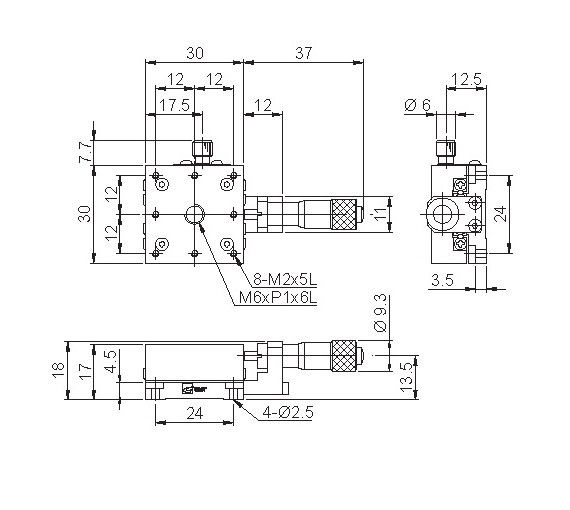

Manual Single-axis Linear Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MX30-AC	Crossed Roller Mini Aluminum Stage X Axis 30x30 mm Table with 6.4mm Travel	Click to Get a Quote

Manual Single-axis Linear Positioning Stage MX30-AC
