Manual Thin Single-axis Positioning Stage
MXL40-AS

Home > Manual Stages > Crossed Roller Stages > Thin Stages

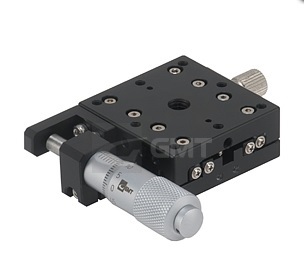

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 40 X 40 mm has a body weight of 0.13 kg.

It provides side type of feed position.

The maximum load of this super thin table is 3 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 10 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MXL40-AS
40 mm by 40 mm X Side +/-6.5 mm 3 micron 3 0.13 Aluminum Alloy Black anodized 10 micron

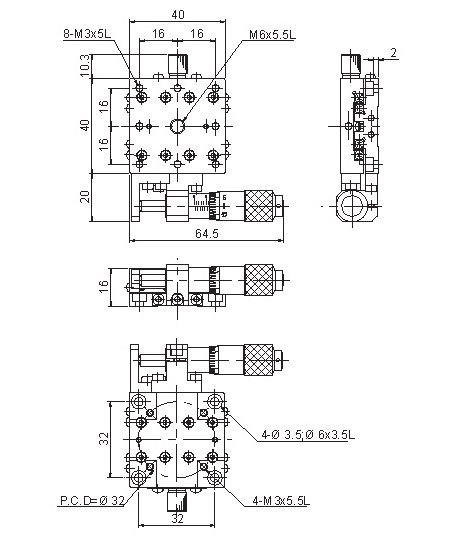

Mechanical Drawing

Manual Thin Single-axis Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MXL40-AS	Manual low profile linear positioning stage , table size 40 by 40 mm, x-axis, feed position side	Click to Get a Quote
