Manual Thin Single-axis Positioning Stage
MXL60-AC

Home > Manual Stages > Crossed Roller Stages > Thin Stages

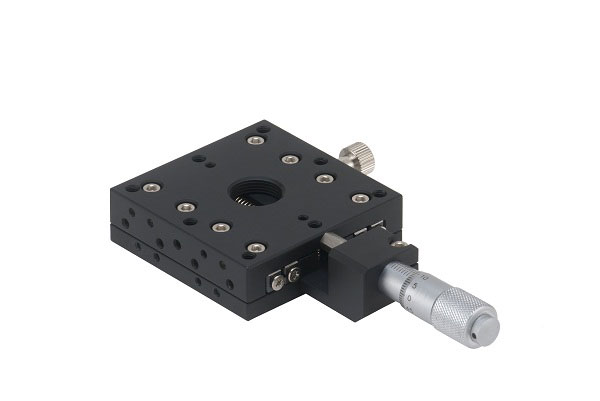

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 60 X 60 mm has a body weight of 0.3 kg.

It provides central type of feed position.

The maximum load of this super thin table is 5 kg.

The stroke is +/- 6.5 mm.

The movement accuracy straightness is 3 microns.

The minimum reading is 10 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MXL60-AC
60 mm by 60 mm X Central +/-6.5 mm 3 micron 5 0.3 Aluminum Alloy Black anodized 10 micron

Mechanical Drawing

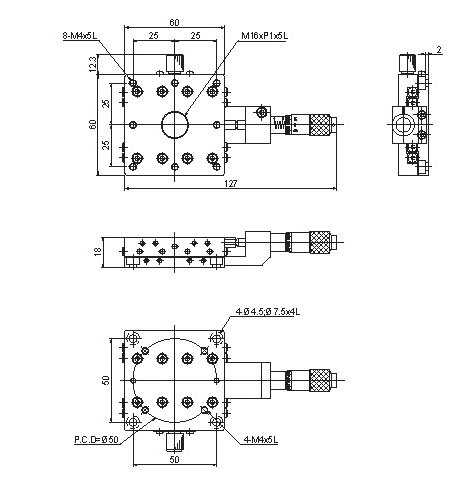

Manual Thin Single-axis Positioning Stage Mechanical Drawing

Ordering Information

Part No.	Description	Amount
MXL60-AC	Manual thin linear positioning stage, table size 60 by 60 mm, x-axis, feed position central	Click to Get a Quote

Manual Thin Single-axis Positioning Stage MXL60-AC

Manual Thin Single-axis Positioning Stage
MXL60-AC
