Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Feeding Screw Z-axis

Manual Linear Positioning Stage Picture

MC4A-25 manual, dovetail, feeding screw, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 25 X 25 mm and have a body weight of 0.9.

The maximum load of these feed screw tables is 1.0 kg.

The stroke of travel is +/- 3 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MC4A-25
25 by 25 30 micron 1.0 0.09 Stage body: Brass
Feeding screw knob: Aluminum Black fluororesin finished +/-3 0.1mm / indicator

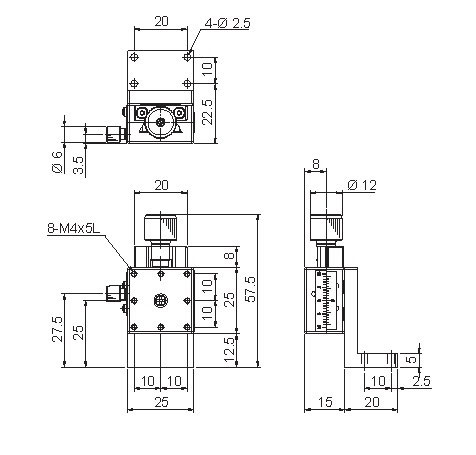

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MC4A-25

Ordering Information

Part No.	Description	Amount
MC4A-25	Manual Stage, Dovetail Stage, Feeding Screw Z-axis, Range of Travel +/-3 mm	Click to Get a Quote
