Manual Linear Positioning Stage Picture

MC1B-140 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 140 mm and have a body weight of 0.56.

The maximum load of these feed screw tables is 4 kg.

The stroke of travel is +/- 60 mm.

The straightness accuracy is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Part No.. Table Size Range of Travel Minimum Reading Straightness accuracy Allowable Weight Material Surface finish
Loading (kg) kg


40 by 140 +/-60 0.1mm/indicator 30microns 4.0 0.56 Aluminum Alloy Black anodized

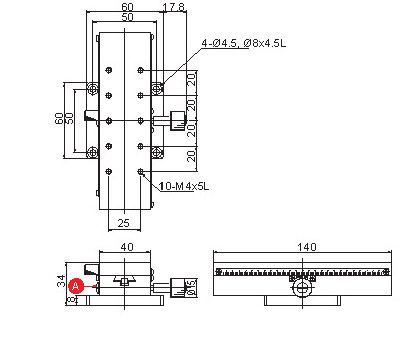

Manual Linear Positioning Stage Mechanical Drawing
MC1B 140

 Ordering Information

Part No. Description Amount
MC1B-140 Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-60 Click to Get a Quote
