MC1B-40 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 40 mm and have a body weight of 0.21.

The maximum load of these feed screw tables is 3 kg.

The stroke of travel is +/- 10 mm.

The straightness accuracy is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Travel Distance per
Rev. of Knob
Minimum reading
indicator

 MC1D-40

40 by 40 30 micron 3.0 0.21 Brass alloy Black fluororesin finished +/- 10 20 0.1mm/indicator

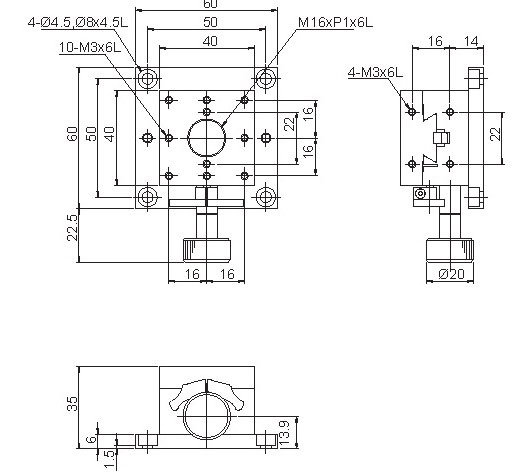

Manual Linear Positioning Stage Mechanical Drawing
MC1D-40

 Ordering Information

Part No. Description Amount
MC1D-40 Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-10 Click to Get a Quote
