Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion X-axis

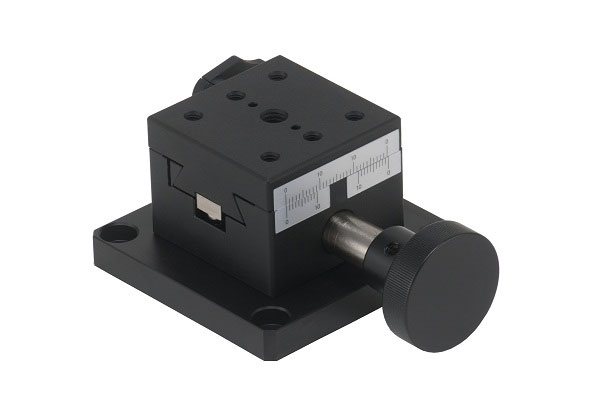

Manual Linear Positioning Stage Picture

MCS-46W manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 mm by 60 mm and have a body weight of 0.24.

The maximum load of these feed screw tables is 4 kg.

The stroke of travel is +/- 15 mm.

The straightness accuracy is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Knob No Minimum reading
indicator

MCS-44
40 mm by 40 mm
X
30 micron 4.0 0.24 Aluminum Alloy Black anodized +/- 10 Single 0.1mm/indicator

MCS-44L
0.24 Dual 0.1mm/indicator

MCS-46
40 mm by 60 mm 0.24 +/- 15 Single 0.1mm/indicator

MCS-46W
0.24 Dual 0.1mm/indicator

Mechanical Drawing

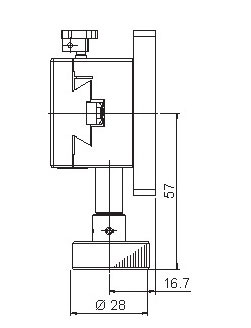

Manual Linear Positioning Stage Mechanical Drawing
MCS-44

Mechanical Drawing

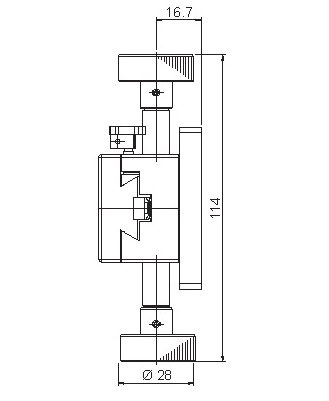

Manual Linear Positioning Stage Mechanical Drawing
MCS-44W

Mechanical Drawing

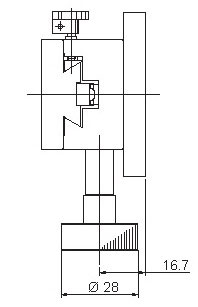

Manual Linear Positioning Stage Mechanical Drawing
MCS-46

Mechanical Drawing

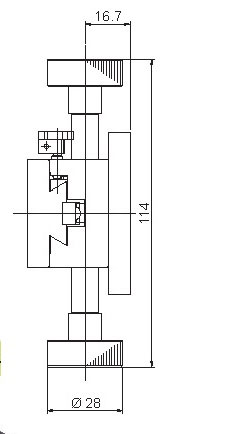

Manual Linear Positioning Stage Mechanical Drawing
MCS-46W

Ordering Information

Part No.	Description	Amount
MCS-44	Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-10	Click to Get a Quote
MCS-44W	Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-10	Click to Get a Quote
MCS-46	Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-15	Click to Get a Quote
MCS-46W	Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-15	Click to Get a Quote
