Manual Linear Positioning Stage Picture

MC4D-2550 manual, dovetail, feeding screw, XYZ-axis stages provide precise and accurate micrometer driven XYZ-axis adjustment of a top platform.

These manual XYZ-axis dovetail rack and pinion is made of brass alloy with an elegant black anodized coating.

The table sizes are 25 X 50 mm and have a body weight of 0.52.

The maximum load of these feed screw tables is 1 kg.

The stroke is +/- 10 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MC4D-2550
25 by 50 X+Z axis 30 micron 1 0.52 Brass alloy Black fluororesin finished +/- 10 0.1mm/indicator

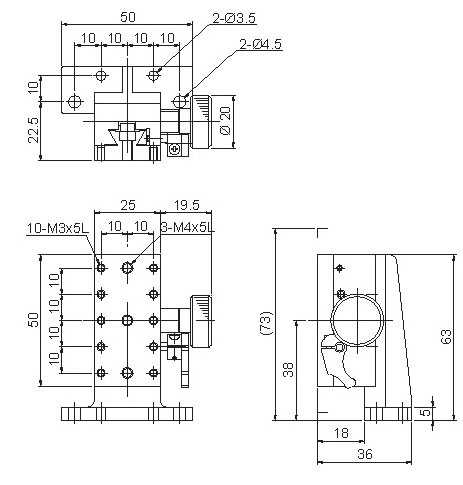

Manual Linear Positioning Stage Mechanical Drawing
MC4D-2550

Ordering Information

Part No.	Description	Amount
MC4D-2550	Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-10 mm	Click to Get a Quote
