Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XYZ-axis

Manual Linear Positioning Stage Picture

MCT-46 manual, dovetail, rack and pinion, XYZ-axis stages provide precise and accurate micrometer driven XYZ-axis adjustment of a top platform.

These manual XYZ-axis dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 by 60 mm and have a body weight of 0.9.

The maximum load of these feed screw tables is 2 kg.

The stroke is +/- 15 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Knob No Minimum reading
indicator

MCT-46
40 by 60 XY+Z axis 30 micron 2 0.9 Aluminum Alloy Black anodized +/-15 mm Single 0.1mm/indicator

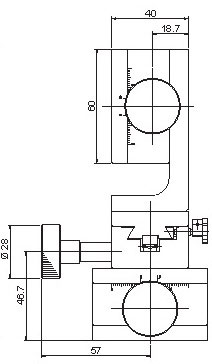

Manual Linear Positioning Stage Mechanical Drawing
MCT-46

Ordering Information

Part No.	Description	Amount
MCT-46	Manual Stage, Dovetail Stage, Rack and Pinion XYZ-axis, Range of Travel +/-15 mm	Click to Get a Quote
