Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

Manual Linear Positioning Stage Picture


MC4B-90 manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 90 mm and have a body weight of 0.45.

The Load Capacity is 2.0 kg.

The stroke is +/- 35 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Minimum reading
indicator

 MC4B-140

40 by 140 30 micron 2.0 0.68 Aluminum Alloy Black anodized +/-60 0.1mm / indicator

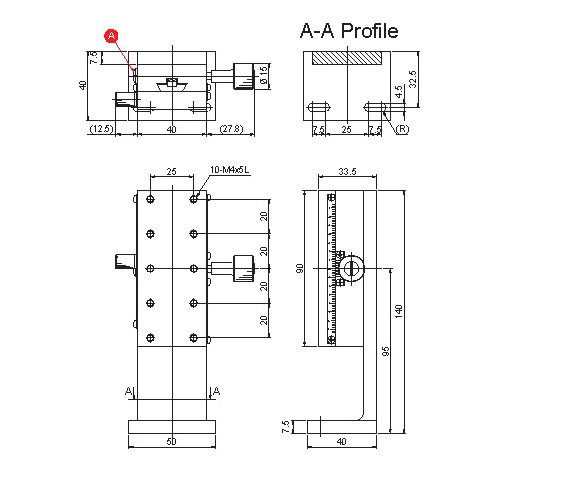

Manual Linear Positioning Stage Mechanical Drawing
MC4B-90

 Ordering Information

Part No. Description Amount
MC4B-90 Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-35 Click to Get a Quote
