Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis

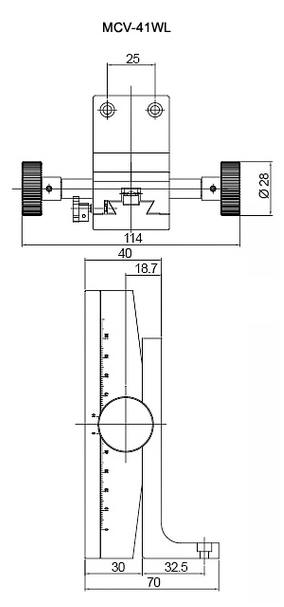

Manual Linear Positioning Stage Picture


MCV-41WL manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 x 140 mm and have a body weight of 0.67.

The Load Capacity is 2kg.

The stroke is +/- 50 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 40 mm by 140 mm

40 mm by 90 mm Z axis 30 micron 2 0.67 Aluminum Alloy Black anodized +/-50 Dual 0.1mm/indicator


MCV-41WL

 Ordering Information

Part No. Description Amount
MCV-41WL Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Range of Travel +/-50 mm Click to Get a Quote
