Manual Linear Positioning Stage

Manual Stages > Dovetail Stages > Rack and Pinion Z-axis




MCV-44L manual, dovetail, rack and pinion, Z-axis stages provide precise and accurate micrometer driven Z-axis adjustment of a top platform.

These manual Z-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.23.

The Load Capacity is 2kg

The stroke is +/- 5 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCV-44L

40 mm by 40 mm Z axis 30 micron 2 0.23 Aluminum Alloy Black anodized +/-5 Single 0.1mm/indicator

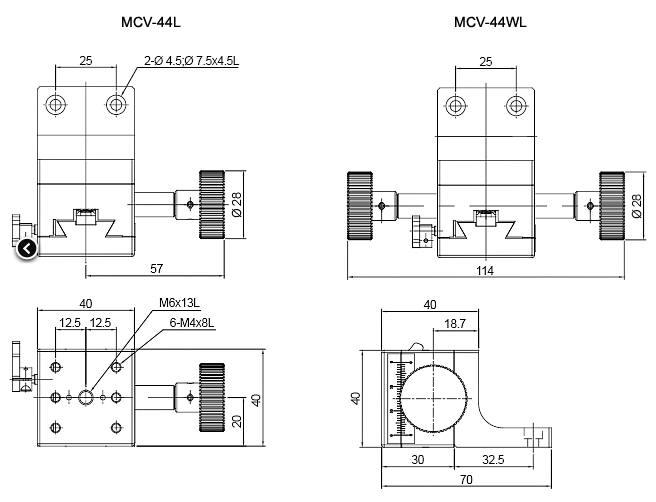

Mechanical Drawing


MCV-44L

 Ordering Information

Part No. Description Amount
MCV-44L Manual Stage, Dovetail Stage, Rack and Pinion Z-axis, Travel 10 mm Click to Get a Quote
