Manual Alpha-axis Goniometer Stage

Home > Manual Stages > Goniometer Stages > Alpha-axis Goniometer Stages

Manual Alpha-axis Goniometer Stage Picture

MXG4-60CS, alpha-axis manual goniometers are made of brass alloy with an elegant black fluororesin coating.

The bench size is 40 X 40 mm has a body weight of 0.3kg.

The drive mechanism is worm and worm gear. The worm gear ratios is ≈28'11'' per revolution of knob.

They provide +/- 8 degrees of rotation.

The maximum load of this goniometer table is 3.0 kg.

The calibrated indicator shows of the angle of rotation.

The height of rotations is 50 mm.

Specifications

Unit: mm

Part No.. Table
Size Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Travel Distance per
Rev. of Knob Minimum reading
indicator Height of
rotational center

MXG4-25CS
40 by 40 3.0 0.18 Brass alloy Black Fluororesin +/- 20° ≈2.2° 1°/indicator 25

MXG4-40CS
40 by 40 3.0 0.24 Brass alloy Black Fluororesin +/- 15° ≈1.89° 1°/indicator 40

MXG4-60CS
40 by 40 3.0 0.3 Brass alloy Black Fluororesin +/- 8° ≈28'11 1°/indicator 50

Mechanical Drawing

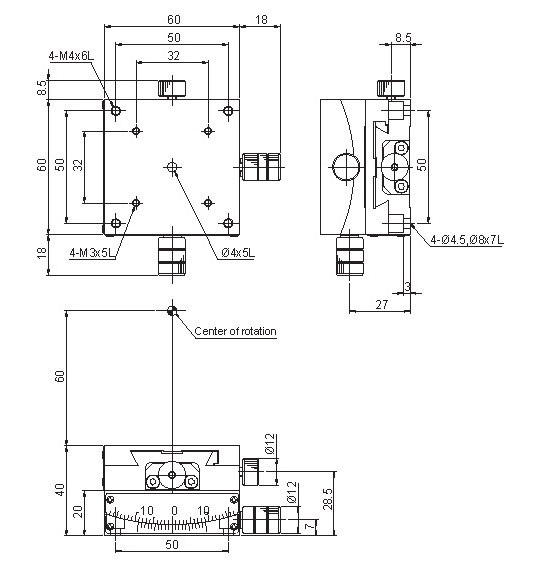

Manual Alpha-axis Goniometer Stage Mechanical Drawing
MYG6-60CS

Ordering Information

Part No.	Description	Amount
MXG4-60CS	Manual Alpha-axis Goniometer Stage, Range of Travel +/- 8°	Click to Get a Quote
