High Performance Solenoid Driver, Pick and Hold Module
|
|
|
Features
- Low Cost
- Small Size
- Low Weight
- Highly Efficient
- Stand Alone
- Microcomputer Based, May Be Re-programmed for Your Application
- Highly Reliable
- Pulse Width Modulated (PWM)
- Single Supply, from +9 VDC to +50 VDC
- High Supply Voltage, +50 VDC
- High Output Current,
15 Amps Peak, 4 Amps RMS
- QUANTITIES AVAILABLE IN STOCK
|
|
Typical
Applications
- Solenoids
- Valves
- Relays
- Actuators
- Voice Coil Actuators
- DC Motors
- Hydraulics
- Electromagnets
- LEDs
General Specifications
- Supply Voltage, +9 to +50 VDC
- Peak Current, 15 Amp
- Average Current, 4 Amp
|
|
|
The High Performance
Pick and Hold
Solenoid Driver Module is designed to avoid
over heating of the solenoid coil once it is energized. It is done by applying an initial higher voltage to the
solenoid coil to provide the necessary force (torque) to pull the plunger
in. Then, when seated, drops the voltage down to a level sufficient
to maintain the plunger in the seated position.
The pick time and hold voltage are
variable and set using the onboard potentiometers.
The USB Control Card could be
used to control up to sixteen Pick and Hold Modules.
|
|
Performance Specifications
|
Parameter |
Min |
Typical |
Max |
Units |
Supply Voltage |
9 |
|
50* |
VDC |
Peak Current |
|
|
15 |
Amp |
Average Current |
|
|
4 |
Amp |
Command Range |
3 |
|
50 |
VDC |
| Operating Temperature |
0 |
|
50 |
Deg C |
|
Weight |
54 |
|
64 |
gr |
* 80 VDC
version is also available.
Performance Table
|
Part No. |
Input Signal |
Pick Voltage |
Pick Time |
Hold Voltage |
Hold Time |
| PH-ET-xx |
Pulse,
3-50 VDC |
Equal
to Power Supply Voltage |
Variable, Set by a Trim Potentiometer,
0 to 2000 msec |
Variable, Set by a Trim
Potentiometer,
0 to 100% of supply voltage |
Indefinite |
|
|
|
|
|
|
|
|

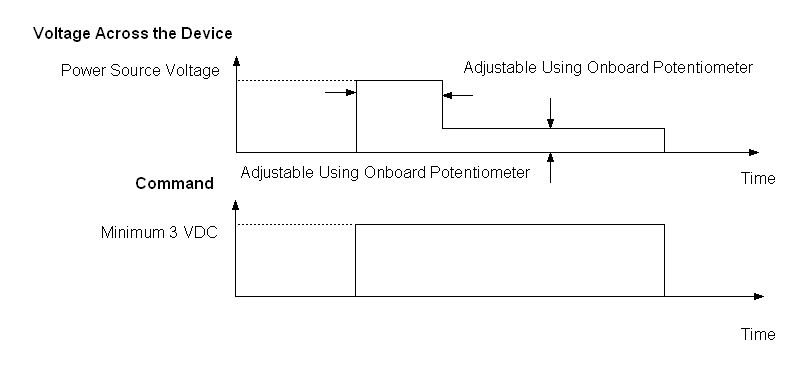

Timing Diagram
Mechanical Specifications
| Mounting Pattern |
Four 6-32 Screws, 0.15" Diameter (3.8 mm), 0.15" Diameter (3.8 mm) |
| Dimensions |
3.00” W, 3.00” D, 0.85” H (76.2 mm, 76.2 mm, 21.5 mm) |
|
Ordering Information
| Part No. |
Description |
Amount
|
|
PH-ET-01 |
Single-device High Performance Pick and Hold Solenoid Driver Module,
+50 VDC Version |
Click to Get a Quote
|
|
PH-ET-02 |
Two-device High Performance Pick and Hold Solenoid Driver Module,
+50 VDC Version |
Click to Get a Quote
|
|
PH-ET-01-HC |
Single-device High Performance Pick and Hold Solenoid Driver Module, High
Current
Version |
Click to Get a Quote
|
|
PH-ET-02-HC |
Two-device
High Performance Pick and Hold Solenoid Driver Module,
Current Version |
Click to Get a Quote
|
|
PH-ET-01-HV |
Single-device High Performance Pick and Hold Solenoid Driver Module, +80 VDC
Version |
Click to Get a Quote
|
|
PH-ET-02-HV |
Two-device
High Performance Pick and Hold Solenoid Driver Module,
+80 VDC Version |
Click to Get a Quote
|
|
|
