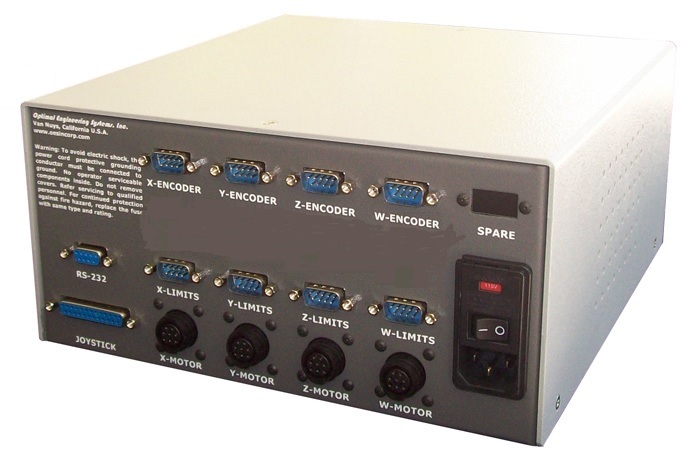

Teachable Motion Control System
Any Combination of Stepper and Servo Motors
GLORIA
Series
|
|
|
|
|
|
Features
- Plug-and-Play
- Quick and Easy to Install
- Very Compact and Easy to Use
- Low Power Consumption, High Torque Motors, High Speed
Capability
- Teachable or Manual Control
-
Joystick / Trackball
Controlled
- Quadrature Encoder Feedback
- Available to Drive Stepper, DC Servo, Brushless, and
Voice Coil Motors
- Totally Integrated Solution
- Evaluation
Unit Is Available upon Request
|
|
Software
-
Easy System Setup and Evaluation
-
Menu Driven
-
Free Software
Included
Stepper Motor
Driver
- Standard to 3 Amps Phase Current, Higher Current Capability Is Also Available
- +12 VDC to +80 VDC
- Standard 10 Micro-steps per Step, Other Resolutions Are Also Available
- Size 8 to 42 Motors
- Auto Current Reduction
DC and Three Phase Brushless
Motor Driver
- Up to 40 Amps Phase
Current
- +18 VDC to +80 VDC
Communication Interface
- RS-232 Interface
- Optional USB Interface
- Optional
Ethernet
Interface
|
|
|
|
The GLORIA series of motion control system is an easy-to-use, plug-and-play and
cost effective solution for stepper
or servo motor control applications.
Each system
includes
the power supplies, the motion controller card,
the
micro-stepper and/or servo motor drivers.
The system
may be controlled in different ways;
Operating the Motor Control System Using the
Supplied Control Panel
The supplied user friendly Control Panel software
allows the user to set-up the module quickly. The
operator is able to move the mechanism to
different positions by pressing the corresponding
buttons of the Control Panel or by using the
joystick and/or trackball.
1) Teach Mode
The motion profile may be
recorded using the "Teach Mode" capability of the software. This
profile may be uploaded to the controller to repeat the same exact motion.
2) Profile Entry Mode
The motion parameters are manually entered in the control panel by typing
the desired values in the corresponding fields, or may be read from a text
file.
|
The system can also be operated using an
analog joystick or a trackball.
The
speed of the motor is proportional to the tilt angle of the joystick
or the rotational
speed of the trackball.
More Info...
|
Ordering Information
|
Part No. |
Description |
Amount |
|
GLORIA-1-STPR-01 |
Plug-and-Play
Single-axis
Teachable
Stepper Motor Control System
|
Click to Get a Quote |
|
GLORIA-2-STPR-01 |
Plug-and-Play
Two-axis
Teachable
Stepper Motor Control System
|
Click to Get a Quote |
|
GLORIA-3-STPR-01 |
Plug-and-Play
Three-axis
Teachable
Stepper Motor Control System
|
Click to Get a Quote |
|
GLORIA-4-STPR-01 |
Plug-and-Play
Four-axis
Teachable
Stepper Motor Control System
|
Click to Get a Quote |
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
Part No. |
Description |
Amount |
|
GLORIA-1-SRVO-01 |
Plug-and-Play
Single-axis
Teachable DC
Servo Motor Control System |
Click to Get a Quote |
|
GLORIA-2-SRVO-01 |
Plug-and-Play
Two-axis
Teachable DC Servo Motor Control System |
Click to Get a Quote |
|
GLORIA-3-SRVO-01 |
Plug-and-Play
Three-axis
Teachable DC Servo Motor Control System |
Click to Get a Quote |
|
GLORIA-4-SRVO-01 |
Plug-and-Play
Four-axis
Teachable DC Servo Motor Control System |
Click to Get a Quote |
This series is suitable for DC Servo Motor with Quadrature Incremental Optical Encoders.
Servo Motor Drivers:
Up to
40 Amps Phase Current
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
Part No. |
Description |
Amount |
|
GLORIA-1-BLDC-01 |
Plug-and-Play
Single-axis
Teachable Brushless DC
Servo Motor Control System |
Click to Get a Quote |
|
GLORIA-2-BLDC-01 |
Plug-and-Play
Two-axis
Teachable
Brushless DC Servo Motor Control System |
Click to Get a Quote |
|
GLORIA-3-BLDC-01 |
Plug-and-Play
Three-axis Teachable
Brushless
DC Servo Motor Control System |
Click to Get a Quote |
|
GLORIA-4-BLDC-01 |
Plug-and-Play
Four-axis Teachable
Brushless DC Servo Motor Control System |
Click to Get a Quote |
This series is suitable for
Brushless DC Servo Motor with Quadrature Incremental Optical Encoders.
Servo Motor Drivers:
Up to
40 Amps Typical Phase Current
Power Supply:
Input Power; 115 or 230 VAC, 50 – 60 Hz
|
|
For a different configuration, please
contact us for a prompt quotation.
| |
