Manual Linear Positioning Stage

Home > Manual Stages > Linear Ball Stainless Steel Stages > Stainless Steel Stage XY-axis

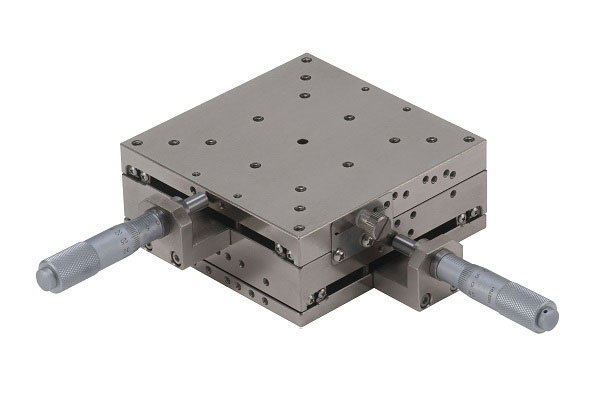

Manual Linear Positioning Stage Picture


This manual linear positioning is made of stainless steel 440C with an electroless nickel plating coating. The bench size is 100 X 100 mm has a body weight of 2.66 kgf.

It provides central type of feed position.

The maximum load of this linear table is 33.6 kgf.

The distance of travel is +/- 12.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Micrometer
minimum reading
Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish

 MY100-SC

100 by 100 XY axes Center +/-12.5 10 μm 3 μm 33.6 2.66 stainless steel 440C Electroless
Nickel plating

Mechanical Drawing

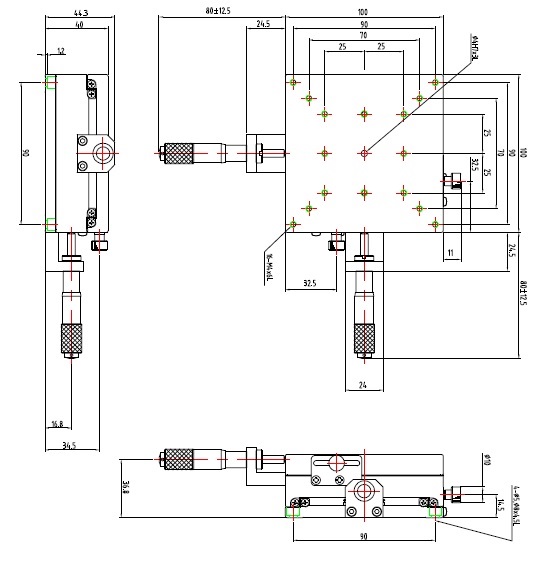

Manual Linear Positioning Stage Mechanical Drawing
MY100-SC

 Ordering Information

Part No. Description Amount
MY100-SC Stainless Steel with nickel plating 100x100mm XY table Click to Get a Quote
