Manual Thin Single-axis Positioning Stage
MXL125-AC

Home >  Manual Stages > Crossed Roller Stages > Thin Stages

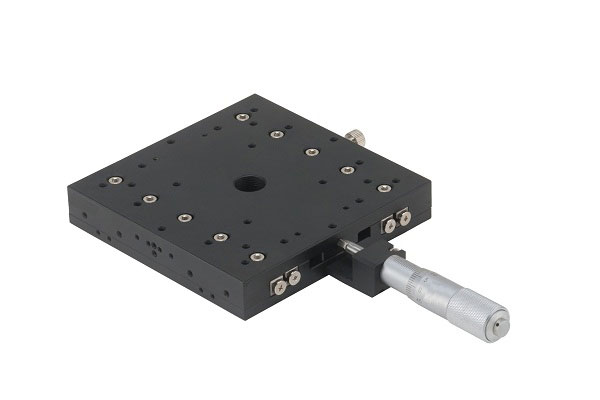

Manual Thin Single-axis Positioning Stage Picture

This manual thin single-axis positioning is made of aluminum alloy with an elegant black anodized coating.

The bench size is 125 x 125 mm has a body weight of 1.1 kgf.

It provides central type of feed position.

The maximum load of this super thin table is 15 kgf.

The distance of travel is +/- 6.5 mm.

The movement accuracy straightness is 3 Ám.

The minimum reading is 10 micro-meter with indicator scale.

Specifications
  Unit: mm
Model No. Table
Size
Axis Feed
Position
Travel Distance Movement accuracy
straightness
Load capacity
(kg)
Weight
(kg)
Material Surface
finish
Minimum reading
indicator

 MXL125-AC

125 mm by 125 mm X Central +/-12.5 mm 3 μm 15 1.1 Aluminum Alloy Black anodized 10 μm


Mechanical Drawing

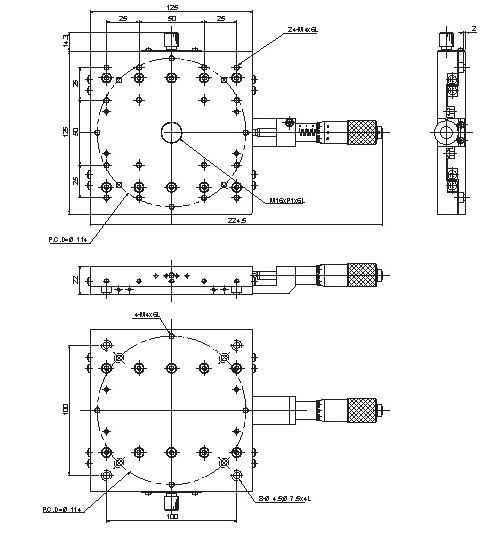

Manual Thin Single-axis Positioning Stage Mechanical Drawing

 Ordering Information

Part No. Description Amount
MXL125-AC Crossed Roller AL Thin Type Mini Stage X Axis 125x125mm Table with 25mm Travel Click to Get a Quote
