Manual
Crossed Roller Vertical Positioning Stage
|
 |
Home >
Manual Stages >
Z-axis Stage >
Crossed Roller |
 |
|
|
This manual crossed roller vertical positioning is made of aluminum alloy with an black anodized coating.
The bench size is 80 X 80 mm has a body weight of 1.0 kgf.
The maximum load of this crossed roller vertical table is 3 kgf.
The distance of travel is +/-5.0 mm.
The movement accuracy of straightness is 3 µm.
The total parallelism is 100 µm.
The minimum reading is 10 micro-meter with indicator scale.
|
|
Specifications
Unit: mm |
|
Model No. |
Table
Size |
Micrometer
minimum reading |
Movement accuracy
straightness |
Load capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Travel Distance |
Parallelism |
|
MZA-80 |
60 by 60 |
10 μm |
3 μm |
3.0 |
1.0 |
Aluminum Alloy |
Black anodized |
+/-2.0 |
100 μm |
|
|
|

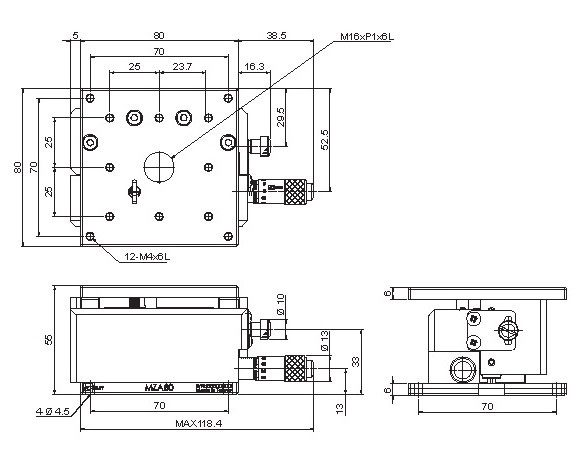

MZA-80 |
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MZA-80 |
Manual Stage, Z-axis Stage, Crossed Roller, Range of Travel +/-5.0 mm |
