Manual Linear Positioning Stage
|
 |
Home >
Manual Stages >
Dovetail Stages >
Feeding Screw X-axis |
 |
|
|
MC1A-25 manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.
These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.
The table sizes are 25 X 25 mm and have a body weight of 0.07.
The maximum load of these feed screw tables is 3 kg.
The stroke is +/- 3 mm.
The movement accuracy straightness is 30 microns.
The minimum reading is 0.1 micro-meter with indicator scale.
|
|
Specifications
| Part No.. |
Table
Size |
Movement accuracy
straightness |
Load Capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Travel Distance |
Minimum reading
indicator |
|
MC1A-25 |
25 by 25 |
30 micron |
3.0 |
0.07 |
Stage body: Brass
Feeding screw knob: Aluminum |
Black fluororesin finished |
+/-3 |
0.1mm / indicator |
|

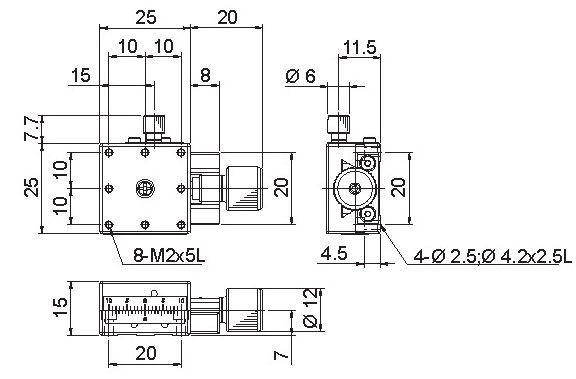

Mechanical Drawing
MC1A-25 |
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MC1A-25 |
Manual Stage, Dovetail Stage, Feeding Screw X-axis, Range of Travel +/-3
mm |
Click to Get a Quote |
|
|
|
