Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Feeding Screw X-axis

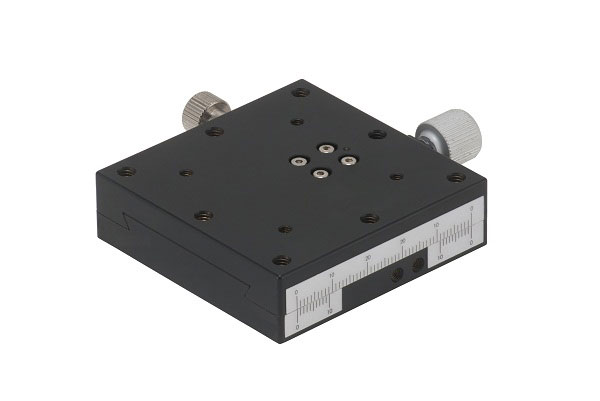

Manual Linear Positioning Stage Picture

MC1A-40 manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.19.

The maximum load of these feed screw tables is 3 kg.

The stroke is +/- 7 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Part No.. Table
Size Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MC1A-40
40 by 40 30 micron 3.0 0.19 Stage body: Brass
Feeding screw knob: Aluminum Black fluororesin finished +/-3 0.1mm / indicator

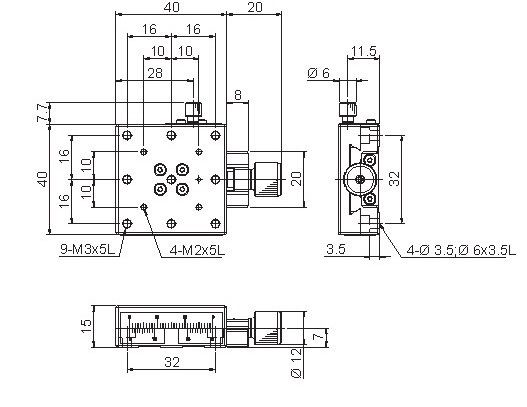

MC1A-40

Ordering Information

Part No.	Description	Amount
MC1A-40	Manual Stage, Dovetail Stage, Feeding Screw X-axis, Range of Travel +/-7 mm	Click to Get a Quote
