Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Feeding Screw X-axis, 4.2 mm Lead

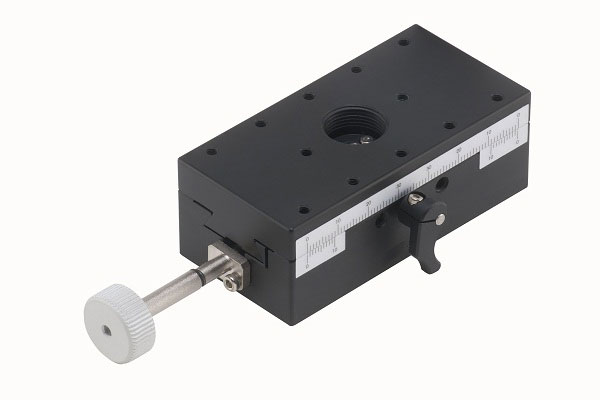

Manual Linear Positioning Stage Picture

MC1A-48KM manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 80 mm and have a body weight of 0.31.

The maximum load of these feed screw tables is 4 kg.

The stroke is +/- 30 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Table
Size Axis Feed
Position Travel Distance Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Minimum reading
indicator

MC1A-48KM
40 by 80 X axis Central +/- 30 30 micron 4 0.31 Aluminum Alloy Black anodized 0.1mm/indicator

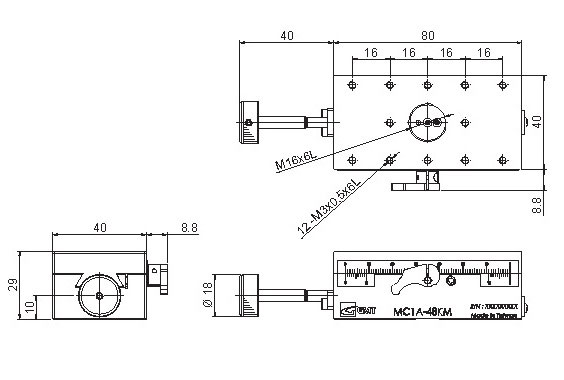

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing

MC1A-48KM

Ordering Information

Part No.	Description	Amount
MC1A-48KM	Manual Stage, Dovetail Stage, Feeding Screw X-axis, 4.2 mm Lead, Range of Travel +/-30 mm	Click to Get a Quote
