Manual Linear Positioning Stage
|
![](http://www.oesincorp.com/images/prev.jpg) |
Home >
Manual Stages >
Dovetail Stages >
Feeding Screw X-axis, 4.2 mm Lead |
![](http://www.oesincorp.com/images/next.jpg) |
![Manual Linear Positioning Stage Picture](pics/MC1A-48KMR.jpg)
|

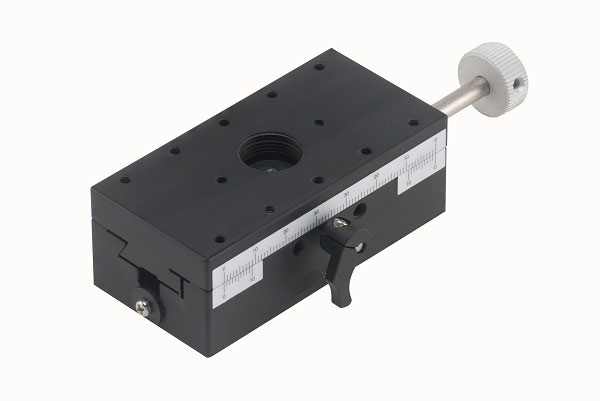

MC1A-48KMR manual, dovetail, feeding screw, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.
These manual X-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.
The table sizes are 40 X 80 mm and have a body weight of 0.31.
The maximum load of these feed screw tables is 4 kg.
The stroke is +/- 30 mm.
The movement accuracy straightness is 30 microns.
The minimum reading is 0.1 micro-meter with indicator scale.
|

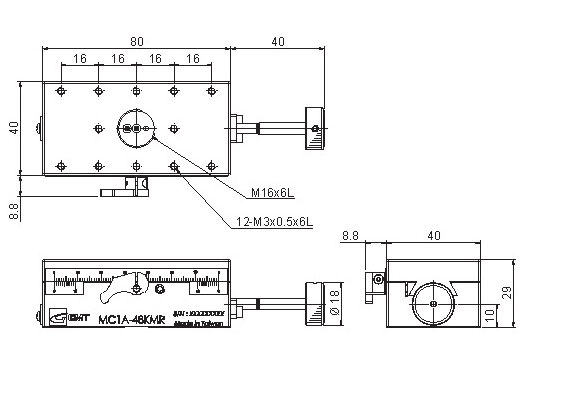

Mechanical Drawing
![Manual Linear Positioning Stage Mechanical Drawing](pics/MC1A-48KMR-md.jpg) |
|
|
Ordering Information
Part No. |
Description |
Amount |
MC1A-48KMR |
Manual Stage, Dovetail Stage, Feeding Screw X-axis, 4.2 mm Lead, Range of Travel +/-30
mm |
Click to Get a Quote |
|
|
