Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stage > Rack and Pinion X-axis long stroke

Manual Linear Positioning Stage Picture

MC1C-150 manual, dovetail, rack and pinion, X-axis long stroke stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis long stroke dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 150 mm and have a body weight of 0.17.

The maximum load of these feed screw tables is 3 kg.

The stroke is +/- 65 mm.

The movement accuracy straightness is 40 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Stage size Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MC1C-150
150 mm 40 micron 3.0 0.17 Aluminum Alloy Black anodized +/- 65 0.1mm/indicator

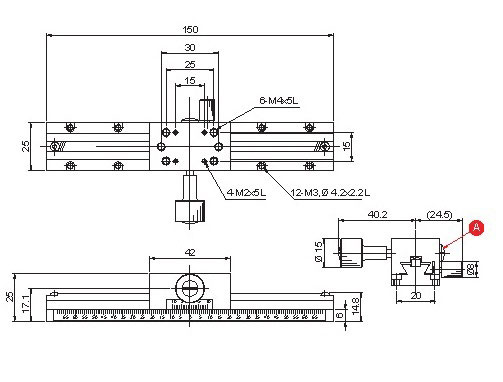

Manual Linear Positioning Stage Mechanical Drawing
MC1C-150

Ordering Information

Part No.	Description	Amount
MC1C-150	Manual Stages, Dovetail Stage, Rack and Pinion X-axis long stroke, Range of Travel +/-65 mm	Click to Get a Quote
