Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stage > Rack and Pinion X-axis long stroke

Manual Linear Positioning Stage Picture

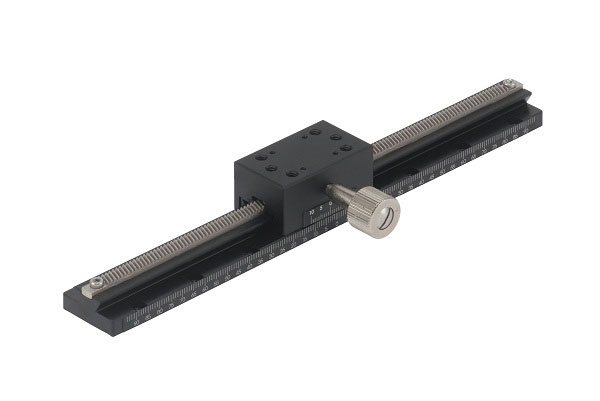

MC1C-200 manual, dovetail, rack and pinion, X-axis long stroke stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis long stroke dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 200 mm and have a body weight of 0.21.

The maximum load of these feed screw tables is 3 kg.

The stroke is +/- 90 mm.

The movement accuracy straightness is 50 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

Unit: mm

Part No.. Stage size Movement accuracy
straightness Load Capacity
(kg) Weight
(kg) Material Surface
finish Travel Distance Minimum reading
indicator

MC1C-200
200 mm 50 micron 3.0 0.21 Aluminum Alloy Black anodized +/- 90 0.1mm/indicator

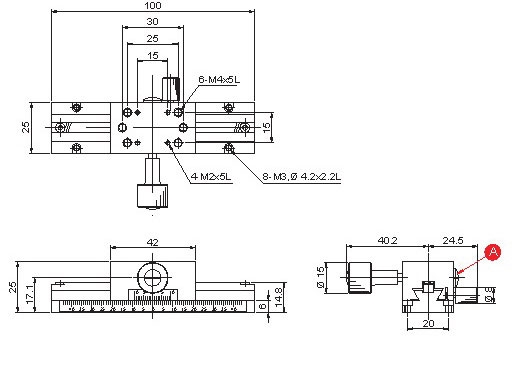

Manual Linear Positioning Stage Mechanical Drawing
MC1C-200

Ordering Information

Part No.	Description	Amount
MC1C-200	Manual Stages, Dovetail Stage, Rack and Pinion X-axis long stroke, Range of Travel +/-90 mm	Click to Get a Quote
