Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion X-axis

Manual Linear Positioning Stage Picture


MCS-41 manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.

These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 mm x 140 mm and have a body weight of 0.55.

The maximum load of these feed screw tables is 4 kg.

The stroke of travel is +/- 50 mm.

The straightness accuracy is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications
  Unit: mm
Part No.. Table
Size
Axis Movement accuracy
straightness
Load Capacity
(kg)
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCS-41

40 mm by 140 mm

X axis


30 micron 4.0 0.55 Aluminum Alloy Black anodized +/- 50 Single 0.1mm/indicator

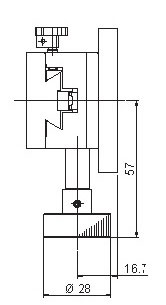

Manual Linear Positioning Stage Mechanical Drawing
MCS 41

 Ordering Information

Part No. Description Amount
MCS-41 Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-50 Click to Get a Quote
