Manual Linear Positioning Stage
|
 |
Home > Manual Stages >
Dovetail Stages >
Rack and Pinion X-axis |
 |
|
|
MCS-41L manual, dovetail, rack and pinion, X-axis stages provide precise and accurate micrometer driven X-axis adjustment of a top platform.
These manual X-axis linear dovetail rack and pinion is made of aluminum alloy with an elegant black anodized coating.
The table sizes are 40 mm x 140 mm and have a body weight of 0.58.
The maximum load of these feed screw tables is 4 kg.
The stroke of travel is +/- 50 mm.
The straightness accuracy is 30 microns.
The minimum reading is 0.1 micro-meter with indicator scale.
|
|
Specifications
|
|
Unit: mm |
|
Part No.. |
Table
Size |
Axis |
Movement accuracy
straightness |
Load Capacity
(kg) |
Weight
(kg) |
Material |
Surface
finish |
Travel Distance |
Knob No |
Minimum reading
indicator |
|
MCS-49 |
40 mm by 140 mm |
X axis
|
30 micron |
4.0 |
0.58 |
Aluminum Alloy |
Black anodized |
+/- 50 |
Dual |
0.1mm/indicator |
 |
 |
 |
|
|
|
|

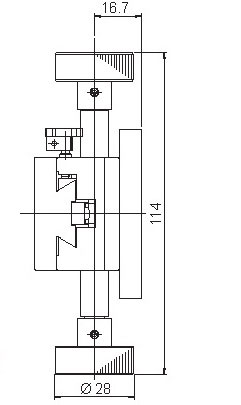

MCS 41W |
|
|
Ordering Information
|
Part No. |
Description |
Amount |
|
MCS-41W |
Manual Stage, Dovetail Stage, Rack and Pinion X-axis, Range of Travel +/-50 |
