Manual Linear Positioning Stage

Home > Manual Stages > Dovetail Stages > Rack and Pinion XZ-axis

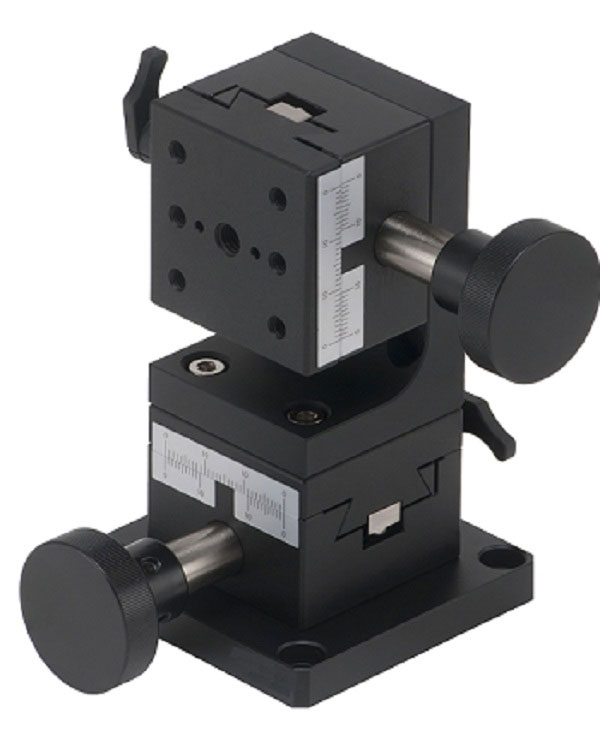

Manual Linear Positioning Stage Picture


MCM-44 manual, dovetail, rack and pinion, XZ-axis stages provide precise and accurate micrometer driven XZ-axis adjustment of a top platform.

These manual X+Z-axis linear dovetail feed screw is made of aluminum alloy with an elegant black anodized coating.

The table sizes are 40 X 40 mm and have a body weight of 0.5.

The stroke is +/- 10 mm.

The movement accuracy straightness is 30 microns.

The minimum reading is 0.1 micro-meter with indicator scale.

Specifications

  Unit: mm
Part No.. Table
Size
Axis Movement accuracy
straightness
Weight
(kg)
Material Surface
finish
Travel Distance Knob No Minimum reading
indicator

 MCM-44

40 mm by 40 mm X+Z axis 30 micron 0.5 Aluminum Alloy Black anodized +/-10 Single 0.1mm/indicator

Mechanical Drawing

Manual Linear Positioning Stage Mechanical Drawing
MCM-44

 Ordering Information

Part No. Description Amount
MCM-44 Manual Stage, Dovetail Stage, Rack and Pinion XZ-axis, Range of Travel +/-10 mm Click to Get a Quote
